STARTECH.COM

3FT USB4 CABLE USB-IF CERTIFIED THUNDERBOLT 4/3 OVER USB TYPE-C

SKU: 12NV42VPN: CC1M-40G-USB-CABLE

3FT USB4 CABLE USB-IF CERTIFIED THUNDERBOLT 4/3 OVER USB TYPE-C

Key Features

  • HIGH PERFORMANCE: 3.3ft/1m USB4 cable supports 40 Gbps, 4K/8K video, and 100W power; USB Type-C connectors offer universal compatibility with USB-C and Thunderbolt 4/3 laptops, docking stations, UHD monitors, and portable USB-C devices
  • USB-IF CERTIFIED: USB4 cable is USB-IF certified with E-Marker chip, for reliable and consistent Power Delivery output to USB-C hosts and devices; Supports DisplayPort 1.4 with DSC; Compliant with PCIe 3.0 for external PCIe chassis/storage

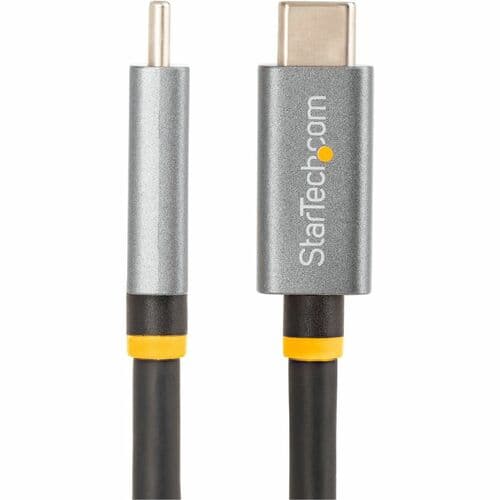

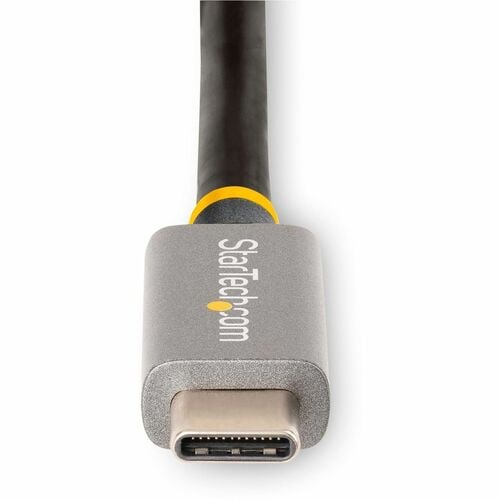

  • QUALITY CONSTRUCTION: Nickel-plated connectors with robust strain reliefs for durability; Coaxial wire with Mylar shield for enhanced EMI protection; TPE cable jacket is environmentally friendly, non-toxic, halogen-free, and RoHS compliant
  • APPLICATIONS: This versatile USB-C cable enables connectivity and charging across compatible USB, Thunderbolt 4/3, and DP Alt Mode devices; Ideal for high speed data transfer or docking stations; Dock and charge a USB-C laptop over a single connection

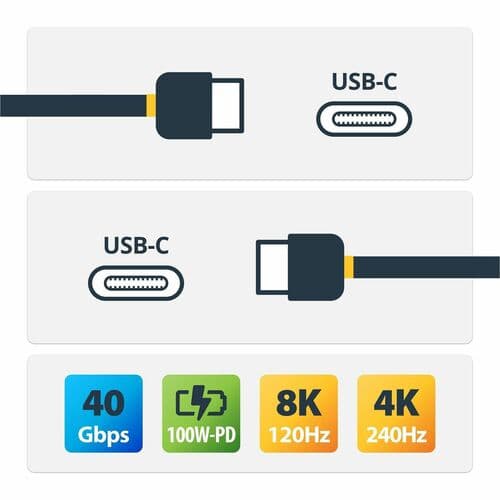

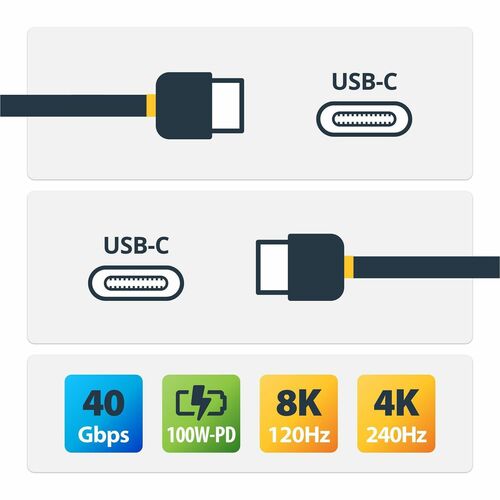

  • SPECS: 3.3ft (1m); USB4 (40 Gbps); Backward Compatible with USB 3.2/3.0/2.0; DisplayPort 1.4 DP Alt Mode w/DSC/HDR/HBR3; Up to 8K 60Hz, 4K 120Hz; PCIe 3.0 (32 Gbps); 100W PD; 30/34 AWG; Cable Outer Diam.: 0.19in (4.95mm)
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This 3ft (1m) USB4 Cable connects to USB Type-C (USB 3.2), Thunderbolt 4/3, and PCIe-enabled devices, delivering up to 40Gbps, 4K/8K video, and 100W charging.

Establish Fast and Stable Power/Data Connections

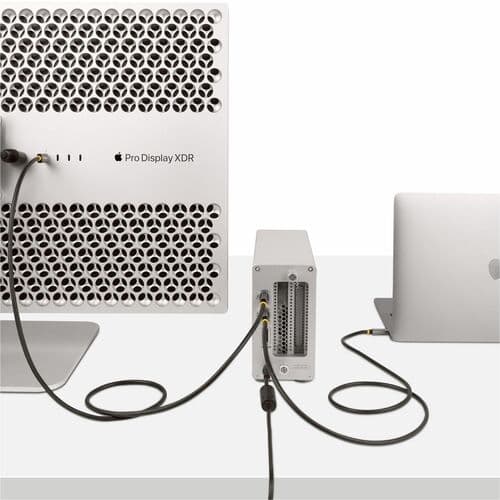

This USB4 Type-C cable is USB-IF certified for guaranteed USB-C compatibility. It reliably delivers consistent transfer rates and up to 100W PD output. It is ideal for 40Gbps data transfer to external USB-C-enabled external storage devices or as a single-cable connection from a USB-C dock to a laptop.

This cable has undergone rigorous USB-IF compliance testing to meet USB4 specifications. This includes electrical and mechanical standards which ensures a reliable, high-quality cable for USB-C devices.

Experience 8K Video with DisplayPort 1.4 Alt Mode

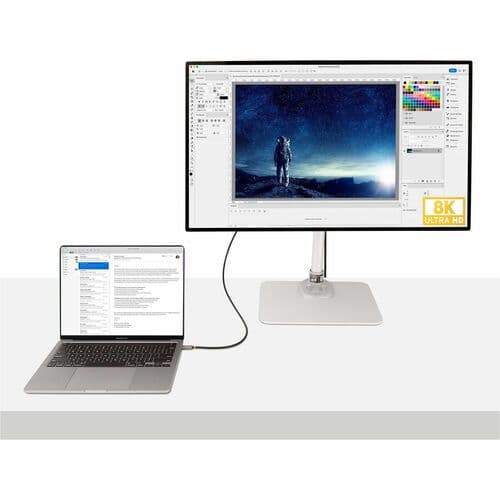

The USB4 cable supports up to 8K 60Hz video over DisplayPort 1.4 Alt Mode with DSC, HDR, and HBR3, and is compatible with dual 4K 60Hz and lower resolutions.

Power a USB-C Laptop

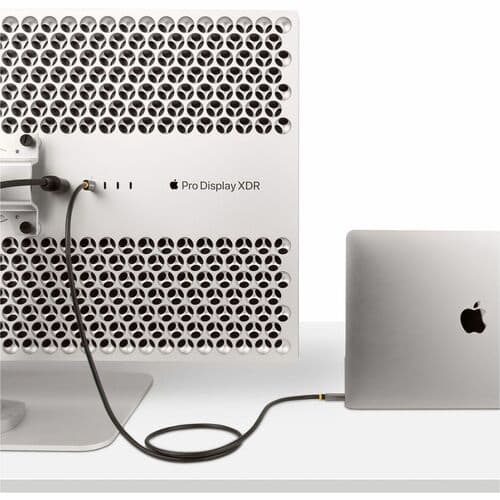

Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB4 cable from a laptop to a USB-C wall charger or docking station.

Tech Specs

3FT USB4 CABLE USB-IF CERTIFIED THUNDERBOLT 4/3 OVER USB TYPE-C specifications
FeaturesDisplay Stream Compression (DSC)
ShieldingYes
Brand NameStarTech.com
Cable TypeCoaxial
Cable Length3 ft
Color FamilyBlack
ManufacturerStarTech.com
Product NameCoaxial Data Transfer Cable
Product TypeData Transfer Cable
Compatibility<p>Apple - MacBook</p>
Product ColorBlack
Jacket MaterialThermoplastic Elastomer (TPE)
Show all 29 specs
Device SupportedStorage Device
Connector PlatingNickel
Packaged Quantity1
Data Transfer Rate40 Gbit/s
Shielding MaterialMylar
American Wire Gauge34 AWG
Supported Resolution7680 x 4320
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberCC1M-40G-USB-CABLE
Connector Type on First EndUSB4 Thunderbolt 4 Type C - Male
Connector Type on Second EndUSB4 Thunderbolt 4 Type C - Male
Manufacturer Website Addresshttp://www.startech.com
Connector Gender on First EndMale
Connector Gender on Second EndMale
Connector on First End Details1 x USB4 Thunderbolt 4 Type C - Male
Connector on Second End Details1 x USB4 Thunderbolt 4 Type C - Male
