3FT DISPLAYPORT CABLE DP 1.2 TO DP VIDEO DISPLAY CORD FOR MONITOR
SKU: CT2401VPN: DISPLPORT3L

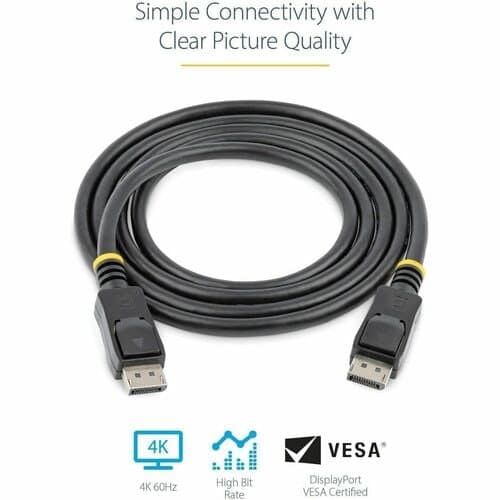

3FT DISPLAYPORT CABLE DP 1.2 TO DP VIDEO DISPLAY CORD FOR MONITOR
Key Features
- HIGH PERFORMANCE CABLE: This 3ft (1m) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)

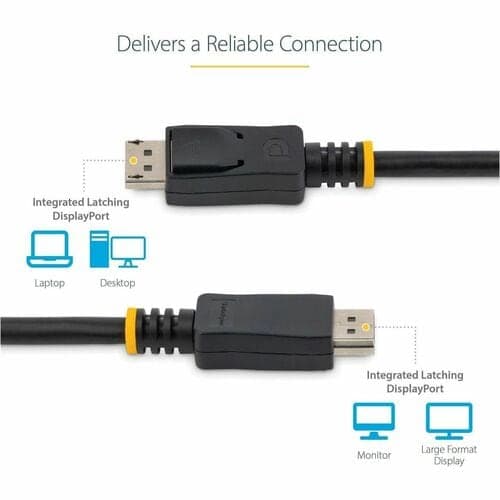

- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- SPECS: 3 ft (1 m) | Black | DisplayPort v1.2 | DP Latching Male to Male | 28 AWG | PVC cable jacket, ABS connector shell | Shield: Al-Mylar foil with Braid | Protocols: HBR 2, MST, GTC | Lifetime Warranty
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The DISPLPORT3L 3ft DisplayPort™ 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI. The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support. The DISPLPORT3L is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

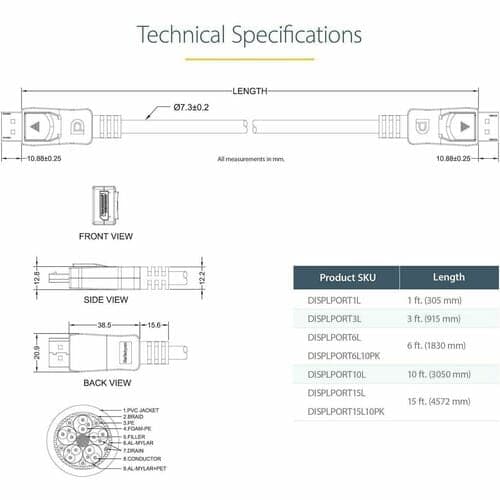

Tech Specs
| Packing | Bagged |
|---|---|
| Features | Strain Relief |
| Conductor | Copper |
| Shielding | Yes |
| Brand Name | StarTech.com |
| Cable Type | DisplayPort |
| Jacket Type | CMG |
| Cable Length | 3 ft |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Product Name | 3 ft DisplayPort 1.2 Cable with Latches M/M - DisplayPort 4k |
| Product Type | Video Cable |
Show all 39 specsShow fewer
| Product Color | Black |
|---|---|
| WEEE Statement | https://media.startech.com/cms/pdfs/displport3l_weee.pdf |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Device Supported | Graphics Card |
| Connector Plating | Gold |
| Country of Origin | China |
| Packaged Quantity | 1 Each |
| Data Transfer Rate | 21.6 Gbit/s |
| REACH free of SVHC | Yes |
| American Wire Gauge | 28 AWG |
| Supported Resolution | 4096 x 2160 |
| Weight (Approximate) | 0.17 lb |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/displport3l_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/displport3l_rohs.pdf |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | DISPLPORT3L |
| Certifications & Standards | <p>CMG Rated</p> |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Environmental Certification | EU RoHS |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Manufacturer Website Address | http://www.startech.com |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| End of Life Manual Availability | Yes |
