3FT DB9 TO 3.5MM SERIAL CABLE RS232 MALE TO 3.5MM SERIAL CABLE
SKU: 08RX69VPN: 9M351M-RS232-CABLE

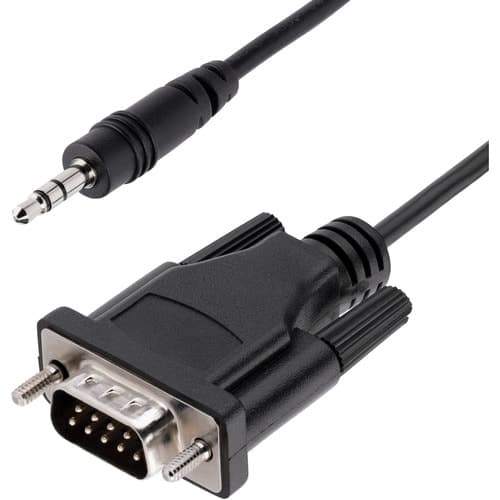

3FT DB9 TO 3.5MM SERIAL CABLE RS232 MALE TO 3.5MM SERIAL CABLE
Key Features
- Makes transferring data effortless and secure, providing dependable speed and consistent functionality for all supported devices
- EMI Protection feature designed for convenience and ease of use, ensuring smooth operation and improved functionality across supported devices
- With DB-9 RS-232 Serial - Male connector, it is compatible with a projector, providing a stable link for efficient operation
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption

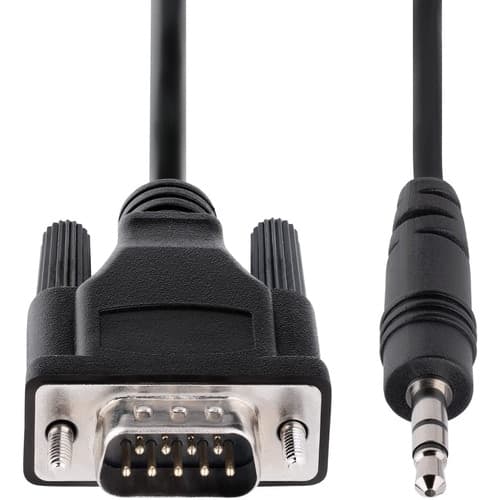

DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
More from the Manufacturer
Tech Specs
| Features | Bendable |
|---|---|
| Shielding | Yes |
| Brand Name | StarTech.com |
| Cable Length | 3.28 ft |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Product Name | DB9 to 3.5mm RS232 Serial Cable |
| Product Type | Data Transfer Cable |
| Product Color | Black |
| Shipping Width | 5" |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shipping Height | 0.40" |
Show all 31 specsShow fewer
| Device Supported | Computer |
|---|---|
| Material Details | metal - shell |
| Product Material | Metal |
| Connector Plating | Nickel |
| Country of Origin | China |
| Packaged Quantity | 1 |
| Connector Material | Polyvinyl Chloride (PVC) |
| Shielding Material | Aluminum Mylar |
| American Wire Gauge | 28 AWG |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | 9M351M-RS232-CABLE |
| Connector Type on First End | Mini-phone Stereo Audio - Male |
| Connector Type on Second End | DB-9 RS-232 Serial - Male |
| Manufacturer Website Address | http://www.startech.com |
| Shipping Weight (Approximate) | 0.80 oz |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x Mini-phone Stereo Audio - Male |
| Connector on Second End Details | 1 x 9-pin DB-9 RS-232 Serial - Male |
