32PORT ACS 8000 CONSOLE SVR W/ SINGLE AC PWR SUPPLY TAA COMPLIANT
SKU: 8B4410VPN: ACS8032SAC-400
32PORT ACS 8000 CONSOLE SVR W/ SINGLE AC PWR SUPPLY TAA COMPLIANT
Key Features
- REMOTE MANAGEMENT: Avocent ACS 8000 32-Port Advanced Terminal Management Serial Console Server with Single AC Power Supply allows users to access and troubleshoot remote locations using automatic network failover to cellular (and failback)
- AUTOMATED PROVISIONING: Offers fast, automated configuration with zero touch provisioning; compliant with data center access and security policies; powerful Dual-core ARM processor and 16GB of flash memory to support automation scripting
- 8 USB 2.0 PORTS: Support external devices, IoT products and IT equipment; Features digital input / output & sensor ports
- POWER DEVICE MANAGEMENT: Dual 1 gigabit Ethernet port for network connectivity and failover and secure in band management for daily networking management; Expanded support for Rack PDUs from Vertiv, ServerTech, APC, Raritan and Eaton along with Vertiv GXT4 UPS systems
- ENVIRONMENTAL SENSOR PORT: To connect temperature, humidity, differential pressure, leak, door pin sensors
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

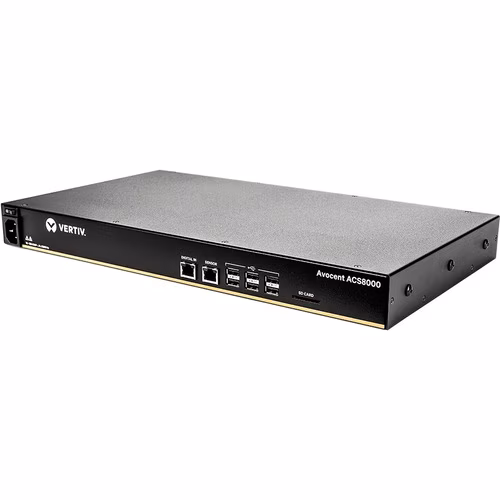

The Vertiv Avocent ACS8032SAC-400 Serial Console System delivers secure in-band and out-of-band visibility and control to downstream equipment in enterprise data centers, as well as cloud and colocation facilities. This serial console system serves as a secure management gateway and single point of entry keeping you connected to critical IT equipment even in the event of partial or total data center outages. With serial access, environmental monitoring, and comprehensive activity logs for all connected devices, the Vertiv Avocent ACS8000 series provides secure equipment access and control across your data center.
Tech Specs
| USB | Yes |
|---|---|
| Depth | 9.5" |
| Width | 17.3" |
| Height | 1.8" |
| Frequency | 60 Hz |
| Brand Name | Vertiv AVOCENT |
| Device Type | Console Server |
| Form Factor | Rack-mountable |
| Serial Port | Yes |
| Manufacturer | Vertiv |
| Product Line | ACS |
| Product Name | ACS 8000 Advanced Console Server |
Show all 42 specsShow fewer
| Product Type | Device Server |
|---|---|
| Wireless LAN | No |
| Input Current | 670 mA |
| Input Voltage | 100 V AC |
| Parallel Port | No |
| Product Model | ACS8032SAC-400 |
| Maximum Memory | 16 GB |
| Product Family | ACS 8000 |
| Product Series | 8000 |
| Centronics Port | No |
| Network (RJ-45) | Yes |
| Standard Memory | 1 GB |
| Network Standard | 1000Base-X |
| PoE (RJ-45) Port | No |
| Product Material | Steel |
| Country of Origin | Mexico |
| Memory Technology | DDR3 SDRAM |
| Packaged Quantity | 1 |
| Power Consumption | 33 W |
| Ethernet Technology | Gigabit Ethernet |
| Input Voltage Range | 100â€"240 VAC |
| Number of USB Ports | 8 |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 6.60 lb |
| Number of Serial Ports | 32 |
| Manufacturer Part Number | ACS8032SAC-400 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | 50°F (10°C) |
| Number of Network (RJ-45) Ports | 2 |
