STARTECH.COM

32FT ACTIVE DISPLAYPORT CABLE 10M DP 1.2 VIDEO DISPLAY CABLE CORD

SKU: UX4272VPN: DISPL10MA

32FT ACTIVE DISPLAYPORT CABLE 10M DP 1.2 VIDEO DISPLAY CABLE CORD

Key Features

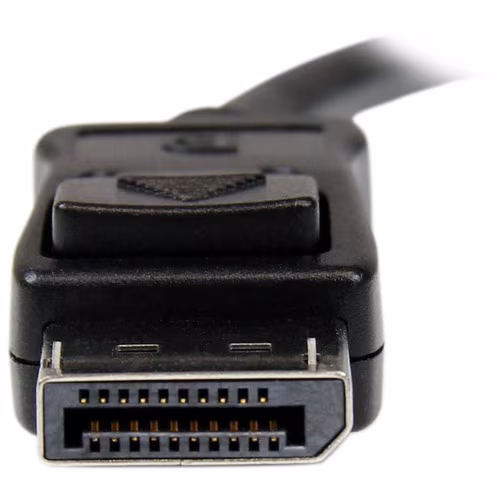

  • 1x DisplayPort male connector
  • 1x DisplayPort male connector with Latches
  • Built-in, active amplifier circuitry
  • Offers 30 feet (10 meters) in cable length
  • Supports resolutions up to WQXGA (25601600)
  • Supports the DPCP (DisplayPort Content Protection) standard in addition to HDCP
  • Designed and manufactured to DisplayPort standards
  • Thin, high-quality 32 AWG wire construction
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Connect DisplayPort®-equipped devices up to 10m away with no signal loss. The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560Ã-1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.

Tech Specs

32FT ACTIVE DISPLAYPORT CABLE 10M DP 1.2 VIDEO DISPLAY CABLE CORD specifications
Width0.8"
Height0.5"
FeaturesActive
ConductorCopper
ShieldingYes
Brand NameStarTech.com
Cable TypeDisplayPort
Jacket TypeCMG
Cable Length32.81 ft
Color FamilyBlack
ManufacturerStarTech.com
Product Name10m Active DisplayPort Cable - DP to DP M/M
Show all 44 specs
Product TypeVideo Cable
CompatibilityFirePro S9000/7000, W8100/7100/5100 or R5000 Graphic Cards
Product ColorBlack
Shipping Width10.04"
WEEE Statementhttps://media.startech.com/cms/pdfs/displ10ma_weee.pdf
Jacket MaterialPolyvinyl Chloride (PVC)
Shipping Height1.57"
Device SupportedNotebook
Connector PlatingNickel
Country of OriginChina
Packaged Quantity1 Each
Data Transfer Rate10.8 Gbit/s
REACH free of SVHCYes
American Wire Gauge32 AWG
Supported Resolution3840 x 2400
Weight (Approximate)1 lb
REACH Declaration URLhttps://media.startech.com/cms/pdfs/displ10ma_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/displ10ma_rohs.pdf
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberDISPL10MA
Certifications & Standards<ul><li>FCC</li><li>CE</li></ul>
Connector Type on First EndDisplayPort Digital Audio/Video - Male
Environmental CertificationEU RoHS
Connector Type on Second EndDisplayPort Digital Audio/Video - Male
Manufacturer Website Addresshttp://www.startech.com
Connector Gender on First EndMale
Shipping Weight (Approximate)1.03 lb
Connector Gender on Second EndMale
Connector on First End Details1 x 20-pin DisplayPort Digital Audio/Video - Male
Connector on Second End Details1 x 20-pin DisplayPort Digital Audio/Video - Male
End of Life Manual AvailabilityYes
