STARTECH.COM

3 PORT USB 3.0 PCI EXPRESS CARD USB PCIE ADAPTER CONTROLLER CARD

SKU: ZM1001VPN: PEXUSB3S3GE

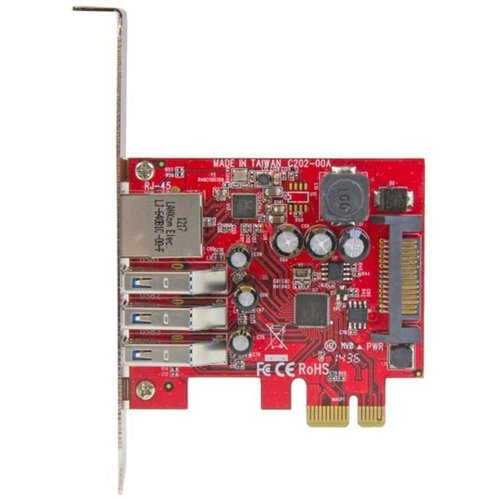

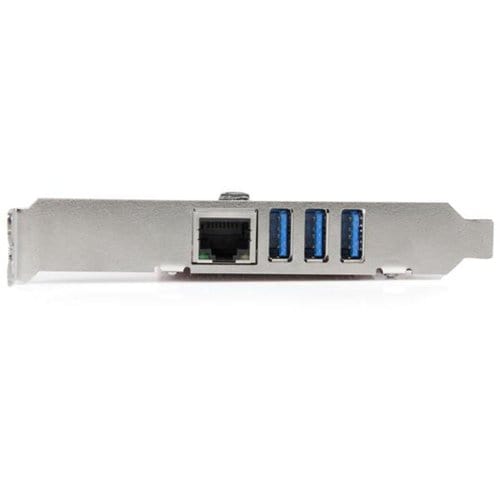

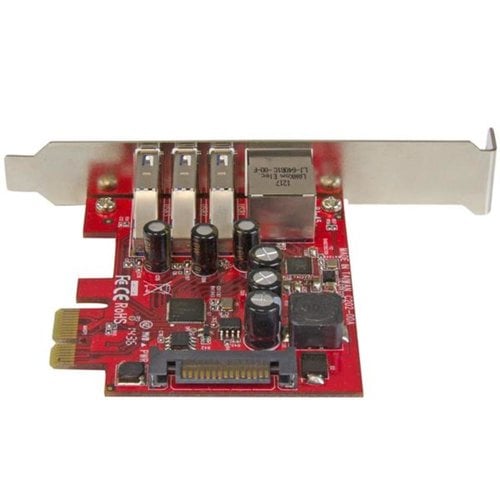

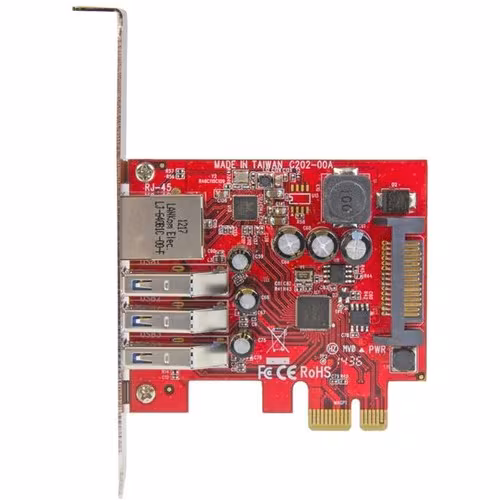

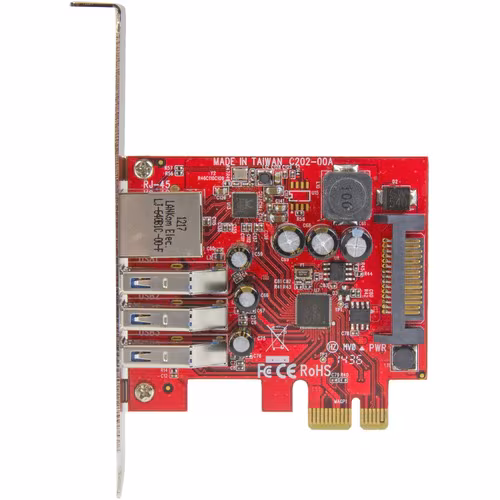

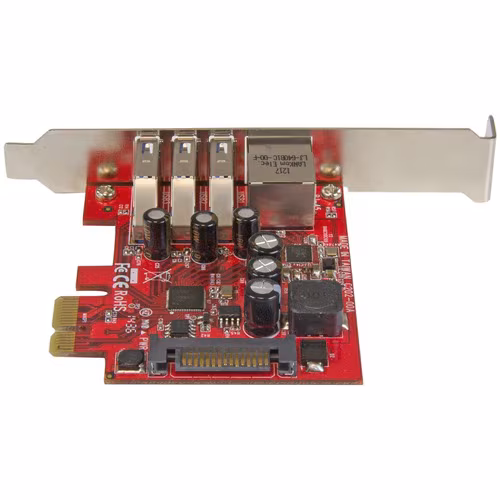

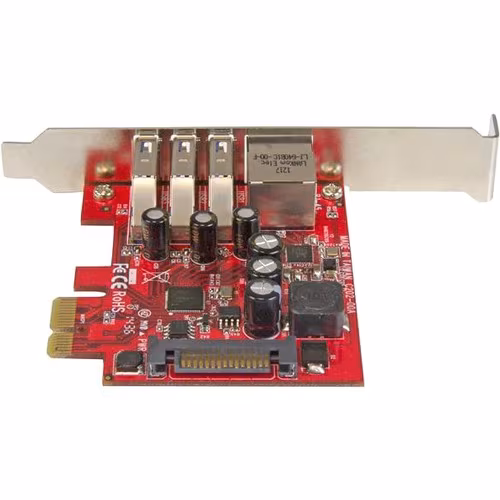

3 PORT USB 3.0 PCI EXPRESS CARD USB PCIE ADAPTER CONTROLLER CARD

Key Features

  • Frees up a PCIe slot by consolidating 3x USB 3.2 Gen 1 (5Gbps) & 1x Gigabit Ethernet ports into a single card
  • Provides installation flexability for standard and low-profile computers, with a dual-profile design
  • Lets you save money and connect your existing devices with USB 2.0 and 1.x backward compatibility
  • Perfect for high-powered USB devices, with optional SATA power providing up to 900mA per port
  • PCIe x1 interface, compliant with PCI Express 2.0 specifications
  • Supports Wake-On-LAN, Energy-Efficient Ethernet, jumbo frames, full duplex flow control, VLAN tagging, and layer
  • 2 priority encoding
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This PCIe USB 3.2 Gen 1 card couples your peripheral and network connections into a single, scalable solution. By combining three USB 3.2 Gen 1 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server. If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC. This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.2 Gen 1 and Gigabit Ethernet adapters. You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases. The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it's backward compatible with USB 2.0 and 1.x, so you won't have to replace all of your existing USB devices. Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi is unavailable or unreliable. Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed. This high-performance SuperSpeed USB 3.2 Gen 1 adapter card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 1, when paired with a The PEXUSB3S3GE is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

3 PORT USB 3.0 PCI EXPRESS CARD USB PCIE ADAPTER CONTROLLER CARD specifications
Width0.7"
Height4.7"
Length3"
Brand NameStarTech.com
Form FactorPlug-in Card
Color FamilyRed
ManufacturerStarTech.com
Product Name3-Port PCI Express USB 3.0 Card + Gigabit Ethernet - 5Gbps
Product TypeUSB Adapter
UASP SupportYes
Product ColorRed
TAA CompliantYes
Show all 28 specs
Host InterfacePCI Express x1
Package Contents<ul> <li>3-Port PCI Express USB 3.0 Card + Gigabit Ethernet - 5Gbps</li> <li>1 x Low-Profile Bracket</li> <li>1 x Driver CD</li> <li>1 x Instruction Manual</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Each
Platform SupportedLinux
Weight (Approximate)2.10 oz
Additional Information<li>Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) </li><li>Windows Server® 2012, 2008 R2 </li><li>Linux 2.6.31 and later (tested up to 3.5) </li>
Number of USB 3.2 Ports3
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberPEXUSB3S3GE
Total Number of USB Ports3
Operating System SupportedWindows Vista
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
Number of Network (RJ-45) Ports1
