2PORT HDMI 2 HD SPLITTER/SWITCH HDMI 2.0 4K HDR SPLITTER/ SWITCHER

SKU: 8PW609VPN: CE-H26D11-S1

In Stock

$69.99$51.42

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Split CATV and other signals with this satellite splitter so that it can be used for more than one device
HDMI interface allows you to connect to a variety of HD devices for the ultimate true high-definition video
Features HDMI port for delivering and transferring high-quality picture and sound simultaneously at a high-speed.
Establishes a rapid connection with USB devices

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Share two 4K HDMI displays (mirror mode) between two 4K HDMI sources with IR remote control switching and EDID management

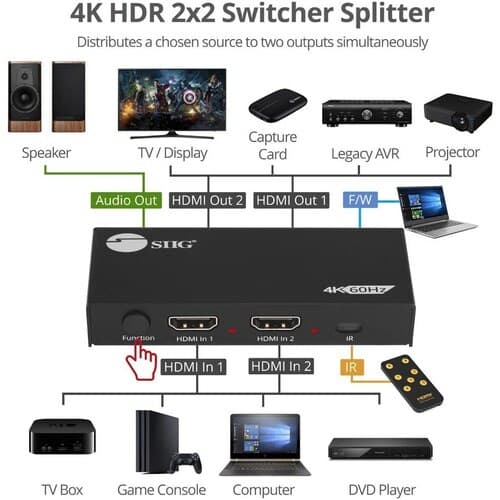

Distributes HDMI video and audio from two HDMI sources to up to 2 HDMI displays simultaneously while maintaining signal quality
Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
Supports resolutions up to 4Kx2K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bit Deep Color
Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
Supports stereo audio extraction to 3.5mm audio output jack for 2ch stereo source devices only

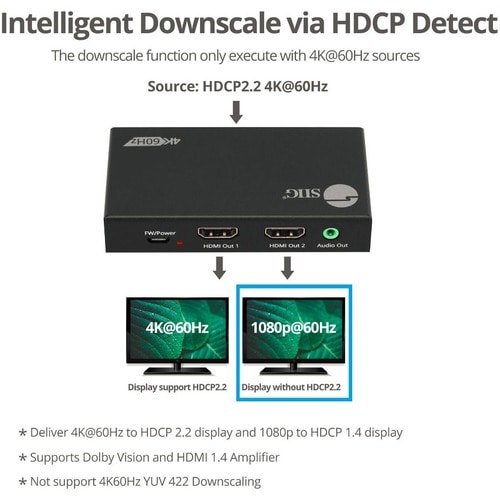

Auto video scaling feature, via HDCP detection of your connected display, detects and configures the video resolution automatically according to the capabilities of the connected monitors

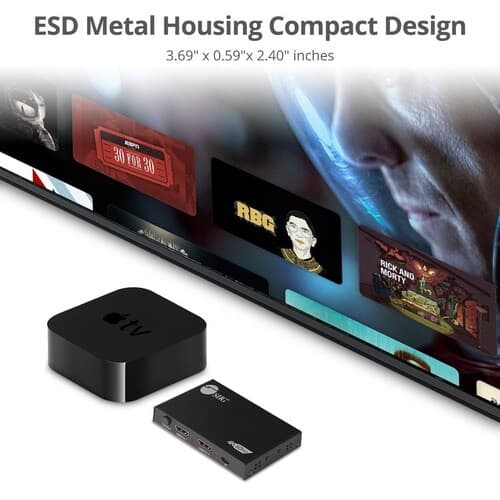

High quality materials and metal housing extends the stability and durability, allowing for long hours of operation
Built-in EDID management and firmware update mechanism further expands compatibility
EDID modes are controlled by the included remote control, push button control cycles between Auto EDID, Copy EDID, and Mixed EDID modes
Individual LED indicators for power and EDID mode allow for easy and quick operating status

Compatibility Notes:
- 4K@30Hz monitors will display in 1080p @60Hz resolution
- Does not support 4K/60Hz YUV 422 down scaling
- The 2 HDMI outputs mirror each other, extended displays are not supported

Tech Specs

2PORT HDMI 2 HD SPLITTER/SWITCH HDMI 2.0 4K HDR SPLITTER/ SWITCHER specifications
USB	Yes
Width	2.1"
Height	0.7"
Length	3.9"
HDMI In	Yes
HDMI Out	Yes
Brand Name	SIIG
Manufacturer	SIIG, Inc
Product Name	2-Port HDMI 2.0 4K HDR Splitter / Switcher
Product Type	Signal Splitter
Input Voltage	230 V AC

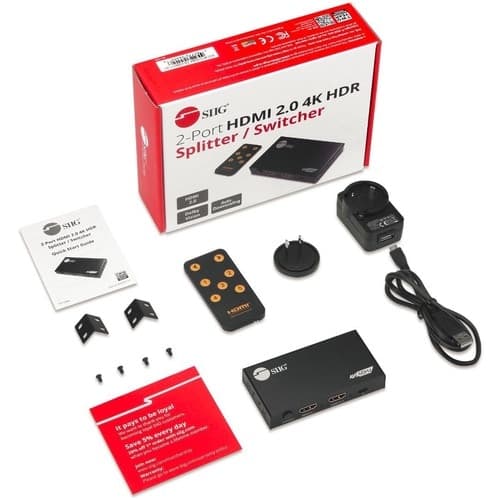

Package Contents	<ul> <li>2-Port HDMI 2.0 4K HDR Splitter / Switcher</li> <li>Power Adapter</li> <li>USB A to Micro-B cable</li> <li>Remote Control</li> <li>Mounting kit</li> <li>Quick Start Guide</li> </ul>

Show all 20 specs

Product Material	Metal
Country of Origin	China
Weight (Approximate)	5.28 oz
Number of HDMI Inputs	2
Number of HDMI Outputs	2
Environmentally Friendly	Yes
Manufacturer Part Number	CE-H26D11-S1
Manufacturer Website Address	http://www.siig.com
