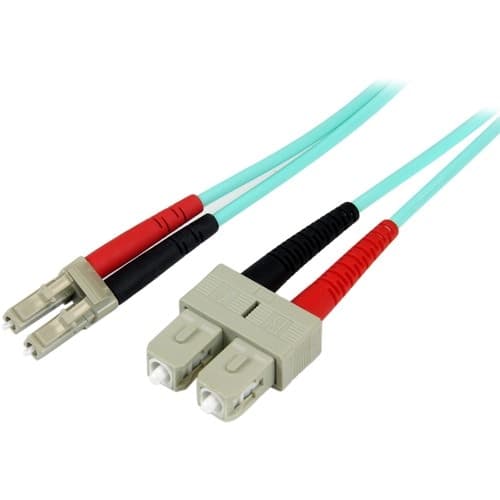

2M MULTIMODE FIBER OPTIC CABLE OM3 LC/SC 50/125 LSZH FIBER CABLE
SKU: Q16745VPN: A50FBLCSC2
2M MULTIMODE FIBER OPTIC CABLE OM3 LC/SC 50/125 LSZH FIBER CABLE
Key Features
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/SC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- COMPATIBILITY: OM3 LC/SC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
- SPECS: 2m (6.6ft) Color: Aqua (OM3); LC/SC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The A50FBLCSC2 2-meter (6.6ft), 10 Gigabit, Aqua Multimode 50/125 Duplex LSZH Fiber Patch Cable is terminated with one LC (male) connector and one SC (male) connector and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds making it perfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.
Suited for a broad range of environments, A50FBLCSC2 is housed in a flame retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, taking safety to a new level by ensuring minimal smoke, toxicity and corrosion in the event of a fire - making it the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Tech Specs
| Brand Name | StarTech.com |
|---|---|
| Cable Type | Fiber Optic |
| Jacket Type | LSZH |
| Cable Length | 6.56 ft |
| Color Family | Green |
| Manufacturer | StarTech.com |
| Product Name | 10Gb Aqua Fiber Patch Cable - LC Multi-mode (M) - SC Multi-mode (M) - 2 m - Fiber Optic - 50 / 125 Micron - Aqua |
| Product Type | Network Cable |
| Product Color | Aqua |
| Shipping Width | 7.87" |
| Shipping Height | 2.20" |
| Device Supported | Network Device |
Show all 27 specsShow fewer
| Fiber Optic Mode | Multi-mode |
|---|---|
| Country of Origin | China |
| Packaged Quantity | 1 Each |
| Cable Characteristic | Patch Cable |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | A50FBLCSC2 |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Manufacturer Website Address | http://www.startech.com |
| Connector Gender on First End | Male |
| Shipping Weight (Approximate) | 1.60 oz |
| Connector Gender on Second End | Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
