STARTECH.COM

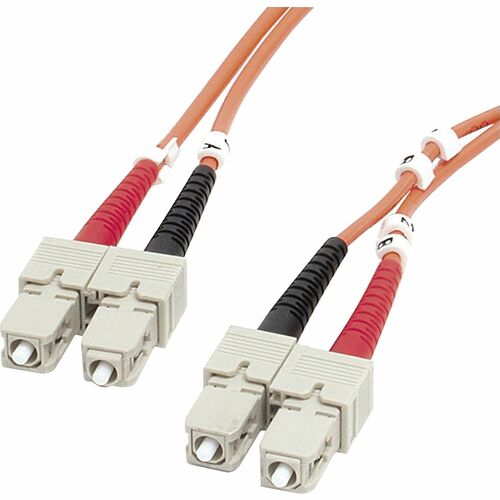

2M MULTIMODE FIBER OPTIC CABLE OM1 SC/SC 10G LSZH FIBER CABLE

SKU: NE7867VPN: FIBSCSC2

2M MULTIMODE FIBER OPTIC CABLE OM1 SC/SC 10G LSZH FIBER CABLE

Key Features

  • FIBER CABLE: OM1 Fiber Cable is immune to EMI and supports up to 10 Gbps Ethernet; Duplex-cord with color-coded TX/RX connectors enable quick visual identification of polarity
  • QUALITY CONSTRUCTION: SC/SC connectors with UPC ends significantly improve return loss; Robust molded connector strain reliefs minimize wear from bending
  • SAFETY AND RELIABILITY: Individually tested for signal integrity; LSZH (Low-Smoke, Zero-Halogen) cable jacket emits low-smoke and toxic fumes if combusted
  • SPECS: Cable length: 2m (6.6ft); Color: Orange; Connectors: SC/SC; Fiber Size: 62.5/125µm; Fiber Classification: OM1; Fiber Type: Multi Mode; Supported network speed: 1/10 Gbps; Cable OD: 2.9mm
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this fiber optic cable is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Connect fiber network devices for high-speed transfers with LSZH rated cable. The FIBSCSC2 2-meter (6.6ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated at both ends with SC (male) connectors, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.This SC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.Backed by Lifetime Warranty, our SC-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.

Tech Specs

2M MULTIMODE FIBER OPTIC CABLE OM1 SC/SC 10G LSZH FIBER CABLE specifications
FeaturesWear Resistant
Brand NameStarTech.com
Cable TypeFiber Optic
Fiber TypeDuplex
Jacket TypeLSZH
Cable Length6.56 ft
Color FamilyOrange
ManufacturerStarTech.com
Product Name2m Multimode 62.5/125 Fiber Patch Cable SC - SC
Product TypeNetwork Cable
Product ColorOrange
Fiber CategoryOM1
Show all 34 specs
Shipping Width0.38"
Jacket MaterialPolyvinyl Chloride (PVC)
Shipping Height8.31"
Device SupportedNetwork Device
Fiber Optic ModeMulti-mode
Country of OriginChina
Packaged Quantity1 Each
Data Transfer Rate10 Gbit/s
Cable CharacteristicPatch Cable
Weight (Approximate)0.10 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberFIBSCSC2
Connector Type on First EndSC/UPC Network - Male
Connector Type on Second EndSC/UPC Network - Male
Manufacturer Website Addresshttp://www.startech.com
Connector Gender on First EndMale
Shipping Weight (Approximate)2.08 oz
Connector Gender on Second EndMale
Connector on First End Details2 x SC/UPC Network - Male
Connector on Second End Details2 x SC/UPC Network - Male
Fiber Optic Cable Core/Cladding Specification62.5/125 µm
