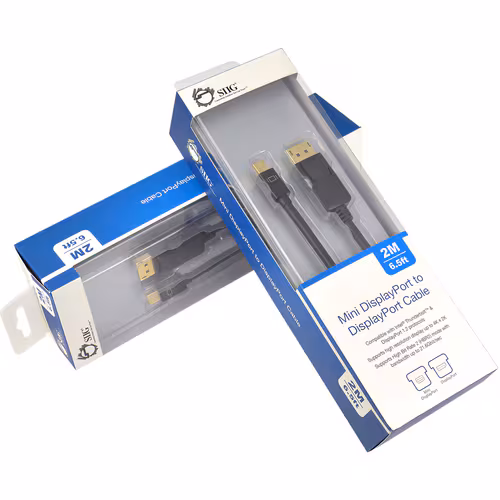

2M MINI DISPLAYPORT TO DISPLAYPORT CABLE

SKU: 9CY539VPN: CB-DP1J12-S1

In Stock

Request pricing

Pricing for this item is configured per-order. Add it to your inquiry below and we'll send a tailored quote.

Key Features

Offers intense audio and video compatibility
Audio/Video Device device supported according to your requirements with maximum productivity

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

SIIG's Mini DisplayPort to DisplayPort Cable - 2M is designed to convert Mini DisplayPort™ to standard DisplayPort connection. This DisplayPort cable is 2 meters (6.6 ft) long and comes with 20-pin Mini DisplayPort (male) to latching 20-pin DisplayPort (male) connector to prevent accidental disconnection. It is the cost-effective solution to instantly enable Mini DisplayPort-equipped systems to work with standard DisplayPort display devices.

Tech Specs

2M MINI DISPLAYPORT TO DISPLAYPORT CABLE specifications
Brand Name	SIIG
Cable Type	DisplayPort/Mini DisplayPort
Cable Length	6.56 ft
Manufacturer	SIIG, Inc
Package Type	Retail
Product Name	Mini DisplayPort to DisplayPort Cable - 2M
Product Type	A/V Cable
Product Color	Black
Jacket Material	Polyvinyl Chloride (PVC)
Device Supported	Audio/Video Device
Connector Plating	Gold
Country of Origin	China

Show all 23 specs

Packaged Quantity	1
Weight (Approximate)	0.19 lb
Additional Information	<ul> <li>Compatible with Intel® Thunderbolt™ and DisplayPort 1.2 protocols</li> <li>Supports high resolution display up to 4Kx2K</li> <li>Support High Bit Rate 2 (HBR2) mode with bandwidth up to 21.6 Gbit/sec</li> <li>Latching 20-Pin DisplayPort connector provides a secure connection</li> <li>Quad-shielding further prevents signal interference</li> <li>Assembly Required: No </li> </ul> <b>Resolutions:</b><br /> <ul> <li>Standard (4:3 and 5:4): 2048x1536, 1600x1200, 1440x900, 1280x1024, 1280x960, 1024x768, 800x600</li> <li>Widescreen (16:9 and 16:10): 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1600x900, 1366x768, 1280x768, 1280x72</li> </ul>
Environmentally Friendly	Yes
Manufacturer Part Number	CB-DP1J12-S1
Certifications & Standards	<ul> <li>CE</li> <li>FCC</li> </ul>
Connector Type on First End	Mini DisplayPort Digital Audio/Video - Male
Connector Type on Second End	DisplayPort Digital Audio/Video - Male
Manufacturer Website Address	http://www.siig.com
Connector on First End Details	1 x 20-pin Mini DisplayPort Digital Audio/Video - Male
Connector on Second End Details	1 x 20-pin DisplayPort Digital Audio/Video - Male
