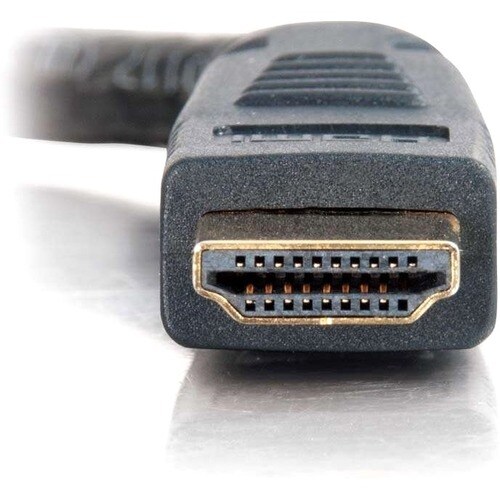

25FT HDMI M/M HIGH SPEED PLENUM CABLE
25FT HDMI M/M HIGH SPEED PLENUM CABLE
Key Features
- Plenum, CMP-rated
- Supports up to a 1080p resolution
- Gold plated connectors
- 24 AWG conductor construction
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Strict building code requirements for cabling in plenum spaces have created installation challenges in settings such as schools, hospitals and other commercial buildings. Previous solutions were limited to "over Cat5/6" products, which added to both the complexity and the reliability of the installation due to the need for power and signal conversion. C2G, formerly Cables To Go, has expanded its connectivity portfolio to include a line of commercial grade plenum cables that are ideal for routing audio/video cables through plenum space above dropped ceilings or under raised floors.
The new Pro Series commercial grade plenum cables offer true digital performance while meeting the highest standards in fire resistance. Available for HDMI®, DVI and DVI+3.5mm audio signals, these cables can meet the demands of virtually any commercial installation.
By supporting resolutions of 1080p for displays and up to 1920 x 1200 pixels for computers, and with lengths ranging from 6 to 50 feet, the Pro Series is the ideal connectivity solution for A/V equipment used in classrooms or conference rooms. 24k gold-plated connectors prevent metal corrosion, resulting in the optimal signal transfer for the highest picture and sound quality. Shielded 24AWG copper conductors protect against EMI and RFI to ensure uninterrupted performance. high quality materials and construction, along with rigorous factory testing and a full lifetime warranty, guarantee long-term, dependable performance.
Tech Specs
| Features | Corrosion-free |
|---|---|
| Shielding | Yes |
| Brand Name | C2G |
| Cable Type | HDMI |
| Jacket Type | FT6 |
| Cable Length | 25 ft |
| Manufacturer | Legrand Group |
| Product Name | 15ft (4.6m) Pro Series HDMI Cable - Plenum CMP-Rated |
| Product Type | A/V Cable |
| Product Color | Black |
| Product Series | Pro |
| Contact Plating | Gold |
Show all 34 specsShow fewer
| Jacket Material | Polyvinylidene Fluoride (PVDF) |
|---|---|
| Contact Material | Brass |
| Device Supported | Computer |
| Insulation Color | Red |
| Material Details | Tinned Copper - Conductor |
| Product Material | Tinned Copper |
| Connector Plating | Gold |
| Country of Origin | China |
| Connector Material | Brass |
| Shielding Material | Aluminized Polyester |
| American Wire Gauge | 24 AWG |
| Insulation Material | Fluorinated Ethylene Propylene (FEP) |
| Supported Resolution | 1920 x 1080 |
| Weight (Approximate) | 2.25 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | 41191 |
| Connector Type on First End | HDMI Digital Audio/Video - Male |
| Connector Type on Second End | HDMI Digital Audio/Video - Male |
| Manufacturer Website Address | http://www.legrand.us |
| Connector on First End Details | 1 x HDMI Digital Audio/Video - Male |
| Connector on Second End Details | 1 x HDMI Digital Audio/Video - Male |
