PLANAR SMALL FORMAT

22IN PXL2230MW LED OPTICAL TOUCH

SKU: QX6147VPN: 997-7039-00

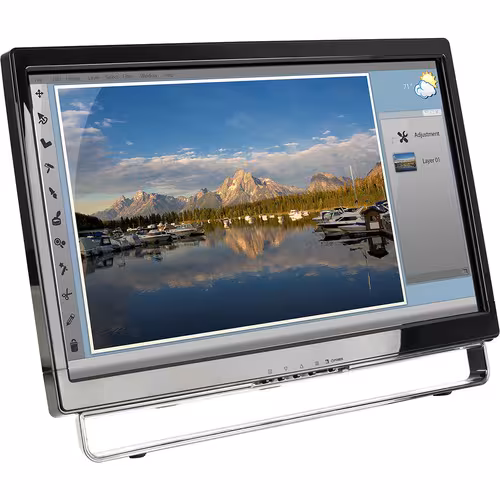

22IN PXL2230MW LED OPTICAL TOUCH

22IN PXL2230MW LED OPTICAL TOUCH Key Features

  • The Full HD lcd touchscreen monitor is perfect for retail, hospitality, and point-of-sale applications
  • The Full HD screen size with Full HD resolution (19201080) delivers sharp, detailed visuals without quality loss or downscaling
  • Optical touch technology makes the entire screen, including corners, responsive to gestures and multiple touch points
  • Edge LED backlighting provides slim design with bright, sharp visuals for responsive touch control
  • Captivating visuals with about 250 Nit brightness levels for clear and vivid touchscreen performance
  • The 1,000:1 contrast ratio delivers deep blacks and bright whites for cinematic touchscreen visuals
  • 16.7 million colors supported for lifelike visuals and smooth touch-based creative workflows
  • VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
  • HDMI connectivity supports HD devices like gaming consoles, laptops, and cameras for an ultimate high-definition experience
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

22IN PXL2230MW LED OPTICAL TOUCH Overview

The PXL2230MW 22" widescreen multi touch LCD monitor is optimized for consumer multimedia applications. Designed for only Microsoft Windows® 7, the monThe PXL2230MW 22" multi touch full HD widescreen edge-lit LED LCD is optimized for consumer multimedia applications. Designed for Microsoft Windows® 7, the monitor features an optical multi touch screen (USB interface). The PXL2230MW offers VGA, DVI-D and HDMI video inputs for flexible monitor setup and integrated speakers. The thin black bezel makes the PXL2230MW ideal for multiple monitor applications.

22IN PXL2230MW LED OPTICAL TOUCH Tech Specs

22IN PXL2230MW LED OPTICAL TOUCH specifications
DVIYes
USBYes
VGAYes
HDMIYes
Depth2.8"
Width20.3"
Height12.9"
FeaturesOSD/Power Lock
SpeakersYes
Brand NamePlanar
Brightness250 Nit
Energy StarNo
Show all 50 specs
Screen ModeFull HD
TouchscreenYes
Aspect Ratio16:9
ManufacturerLeyard
Product NamePXL2230MW Touchscreen LCD Monitor
Product TypeLCD Touchscreen Monitor
Input Voltage110 V AC
Product ModelPXL2230MW
Response Time5 ms
Contrast Ratio1,000:1
HDCP SupportedYes
Color Supported16.7 Million Colors
Depth with Stand4.90"
Limited Warranty3 Year
Package Contents<ul><li>PXL2230MW Touchscreen LCD Monitor</li><li>Stylus</li></ul>
Panel TechnologyThin Film Transistor (TFT)
Touchscreen TypeOptical
Width with Stand20.30"
Height with Stand14.70"
Screen Size Class22"
Maximum Resolution1920 x 1080
Multi-touch ScreenYes
Platform SupportedPC
VESA Mount Standard100 x 100
Backlight TechnologyEdge LED
Viewable Screen Size22"
Weight (Approximate)9.90 lb
Native Contrast Ratio1,000:1
Standard Refresh Rate60 Hz
VESA Mount CompatibleYes
Vertical Viewing Angle160°
Adjustable Display AngleYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Horizontal Viewing Angle170°
Manufacturer Part Number997-7039-00
Certifications & Standards<ul><li>UL/cUL</li><li>FCC-B</li><li>CE</li></ul>
Manufacturer Website Addresshttp://www.planar.com
