2-PT SERIAL TO ETHERNET ADAPTER #REF

SKU: KY5956VPN: I23-SERIAL-ETHERNET

In Stock

$253.63

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

DUAL PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
VERSATILE CONFIGURATIONS: RJ45 LAN to RS232 converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices
RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 7x2.3x0.9in (178x59.4x23mm)
SERIAL TO IP CONVERTER OPTIONS: Our family of device servers includes the following options: I13-SERIAL-ETHERNET (1 Port), I13P-SERIAL-ETHERNET (1 Port w/ PoE), I23-SERIAL-ETHERNET (2 Port), and I43-SERIAL-ETHERNET (4 Port)

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This 2-port serial to IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network.

Configuration and Management

The serial over LAN adapter is highly customizable using the Windows-based companion software, Device Server Manager (DSM), that enables the creation of virtual COM ports, allowing seamless migration of existing serial applications to the new virtual COM ports. The DSM provides a unified management experience, allowing multiple serial to Ethernet converters to be managed simultaneously. The converter also features a versatile web-based interface for remote management, making it compatible in mixed OS environments.

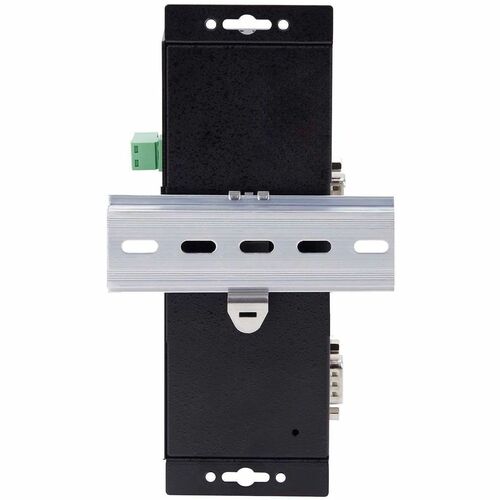

Flexible Installation and Rugged Chassis

Dual power options, DC jack and terminal block, provide installation flexibility and convenience. The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. Dimensions of 7x2.3x0.9in (178x59.4x23mm).

Ethernet and Power Options

The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports Level-4 ESD protection (15kV air/8kV contact), and can supply 5VDC over pin 9 if required.

Tech Specs

2-PT SERIAL TO ETHERNET ADAPTER #REF specifications
Depth	2.4"
Width	7"
Height	0.9"
Brand Name	StarTech.com
Form Factor	DIN Rail Mountable
Serial Port	Yes
Color Family	Black
Manufacturer	StarTech.com
Product Name	Device Server
Product Type	Device Server
Input Current	480 mA
Input Voltage	120 V AC

Show all 34 specs

Product Color	Black
TAA Compliant	Yes
Network (RJ-45)	Yes
Network Standard	10/100Base-T

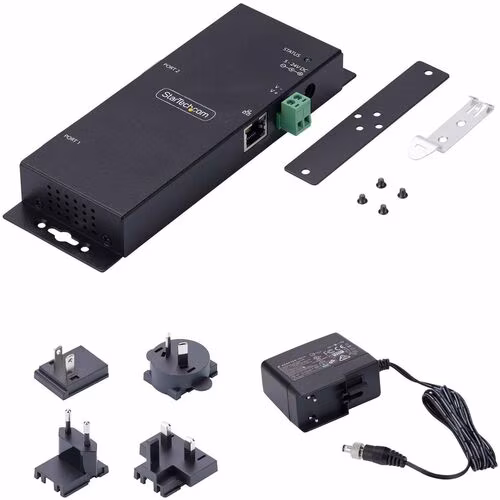

Package Contents	<ul><li> Device Server</li><li> 1 x Din Rail Kit</li><li> 2 x Din Rail Screws</li><li> 1 x Universal Power Adapter</li><li> 1 x Quick-Start Guide</li></ul>
Product Material	Steel
Packaged Quantity	1
Power Consumption	15 W
Ethernet Technology	Fast Ethernet
Input Voltage Range	100V AC to 240V AC
Plug/Connector Type	Type M
Media Type Supported	Twisted Pair
Weight (Approximate)	11.10 oz
Number of Serial Ports	2
Connectivity Technology	Wired
Manufacturer Part Number	I23-SERIAL-ETHERNET
Certifications & Standards	<ul><li> IEEE 802.3u</li><li> IEEE 802.3i</li></ul>
Manufacturer Website Address	http://www.startech.com
Maximum Operating Temperature	140°F (60°C)
Minimum Operating Temperature	32°F (0°C)
Total Number of Network Ports	1
Number of Network (RJ-45) Ports	1
