2 PORT USB C KVM DP SWITCH - 4K 60HZ 3.5MM USB AUDIO
SKU: 08HZ99VPN: SV231DPUCA
2 PORT USB C KVM DP SWITCH - 4K 60HZ 3.5MM USB AUDIO
Key Features
- USB-C DP ALT MODE: Share a monitor, mouse, keyboard and peripherals using a single USB-C cable connected to any PC, laptop or Macbook that supports USB-C DP Alt-mode - Host USB-C DP Alt Mode ports support up to 4K 60Hz and USB transfer speeds up to 5 Gbps
- 4K 60HZ WITH HDR: This KVM supports up to 4K 60Hz (4:4:4) with 2x USB-A 480Mbps hub ports - Supports wide screen resolutions up to 5120x1440 @ 60Hz - This KVM Switch is ideal for applications such as CAD/CAM, video editing, and content creation
- TECH SPECS: Up to 4K 60Hz - DisplayPort 1.2 - HDCP 2.2 - HDR - 2x USB-C Host Ports - 4x USB HID - 2x USB-A Hub Ports - 3.5mm Audio & Mic - USB Audio - Hotkey or Push Button Switching - USB4, Thunderbolt 3/4 Compatible - OS Independent - TAA Compliant
- IMPROVE EFFICIENCY: Switch between two computers sharing a monitor, keyboard, mouse, and audio peripherals over a single USB-C connection per computer - This DisplayPort KVM features keyboard hotkeys or a push button for switching between active computers
- ANALOG & DIGITAL AUDIO: This USB C KVM Switch supports 2ch analog and digital audio output and microphone input through 3.5mm or USB-C ports, allowing all multimedia to be centralized and controlled - Audio profiles are available through hotkey toggling
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
This 2-port KVM switch combines 4K 60Hz capabilities with control of two USB-C DP Alt-mode, Thunderbolt 3, or Thunderbolt 4 computers.
4K 60Hz Resolution
This 2-Port USB-C KVM switches between two USB-C enabled computers viewed over a single DisplayPort monitor. It supports up to 4K 60Hz (4:4:4) resolutions with 2x USB-A 480Mbps hub ports. This KVM is ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Analog and Digital Audio
This USB-C DisplayPort KVM Switch supports 2-channel analog and digital audio output, as well as microphone input, through 3.5mm or USB ports. This provides the user with centralized audio control through the KVM switch. Audio profiles are selectable with hot key commands.
Intuitive Control

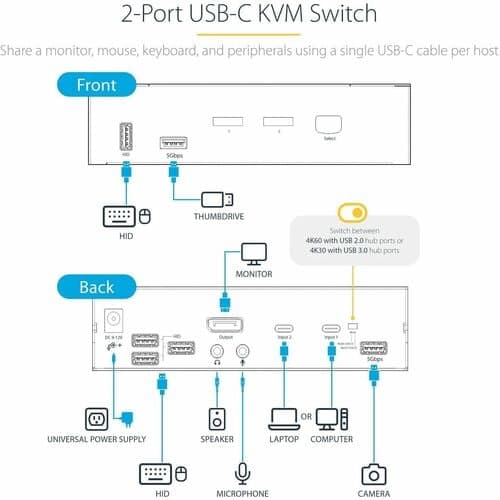

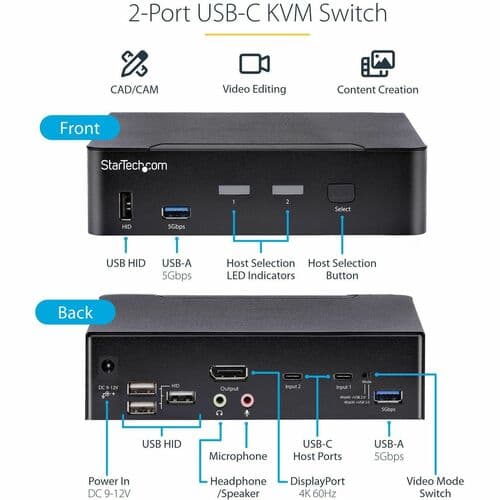

The front panel push button and hot key functions make it easy to switch between computers. Install host computers using a single USB-C cable to connect to the KVM. USB HID and USB Hub ports on the front and rear ensure convenient setup configuration and access to USB peripherals. The metal housing of the KVM Switch is suitable for many installation environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
Tech Specs
| USB | Yes |
|---|---|
| Depth | 6.3" |
| Width | 5.5" |
| Height | 1.6" |
| Brand Name | StarTech.com |
| DisplayPort | Yes |
| Form Factor | Desktop |
| Manufacturer | StarTech.com |
| Product Name | KVM Switchbox |
| Product Type | KVM Switchbox |
| Input Current | 1.20 A |
| TAA Compliant | Yes |
Show all 28 specsShow fewer
| Power Plug Type | Type M |
|---|---|

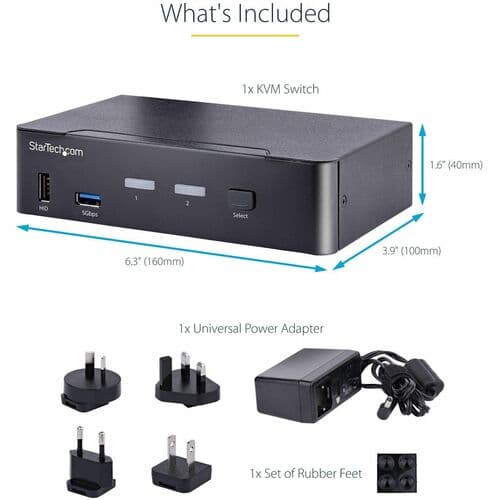

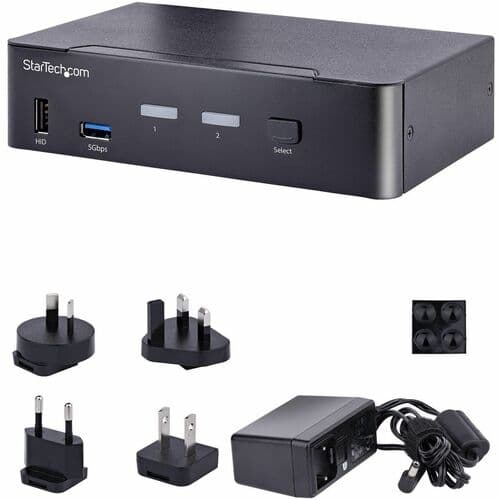

| Package Contents | <ul> <li>KVM Switchbox</li> <li>1 x Set Of Rubber Feet</li> <li>1 x Universal Power Adapter</li> <li>1 x Quick-Start Guide</li> </ul> |
| Country of Origin | Taiwan |
| Packaged Quantity | 1 |
| Input Voltage Range | 100 - 240 AC |
| Number of USB Ports | 8 |
| Weight (Approximate) | 1.40 lb |
| Number of DisplayPorts | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | SV231DPUCA |
| Manufacturer Website Address | http://www.startech.com |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
