2 PORT POE CARD NETWORK PCIE GIGABIT ETHERNET NIC ADAPTER RJ45
SKU: QR2315VPN: ST2000PEXPSE
2 PORT POE CARD NETWORK PCIE GIGABIT ETHERNET NIC ADAPTER RJ45
Key Features
- Dual 10/100/1000 Mbps PoE RJ45 ports
- Supports IEEE 802.3at (Type 1, 2) Power over Ethernet standard
- Power Sourcing Equipment (PSE) design, provides data and up to 25.5W of power on each port
- Built-in SATA and LP4 Molex power connector
- Unique surge protection design helps prevent system damage in the event of lightning strikes
- Jumbo Frame support
- On-chip 48 KB Big Transmit/Receive Buffer Support
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
- Crossover Detection & Auto-Correction (Auto MDIX)
- Includes full and low profile/half-height installation brackets
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

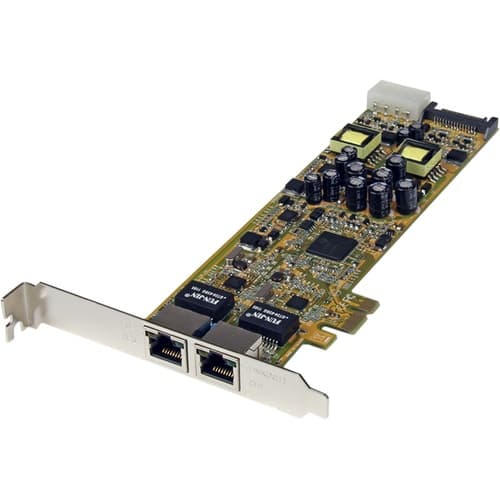

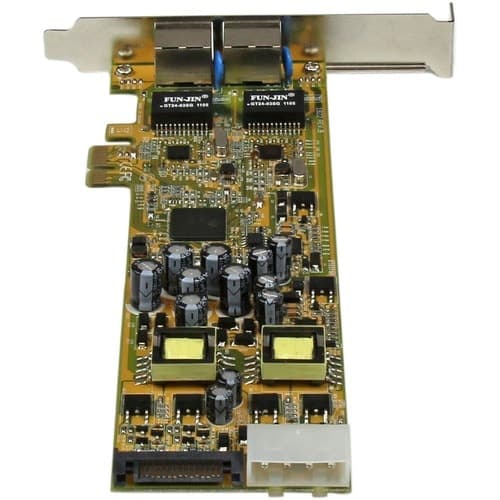

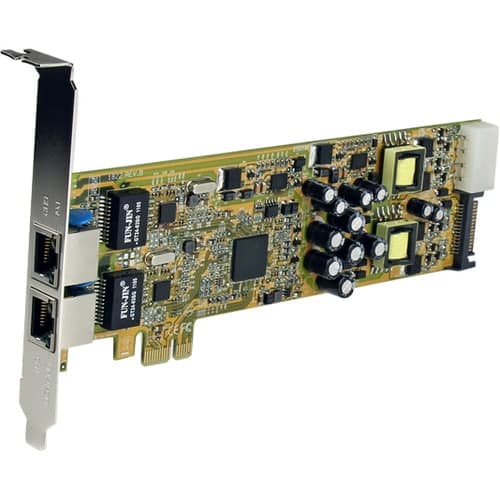

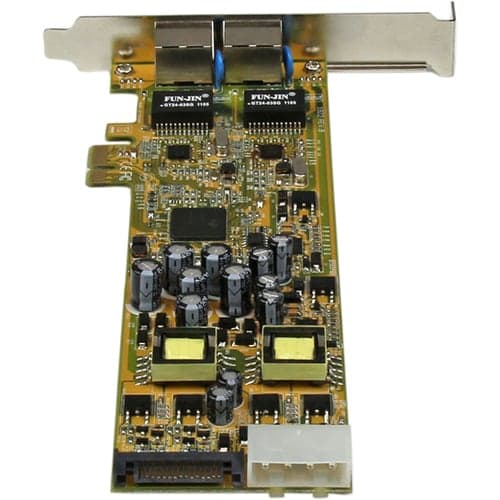

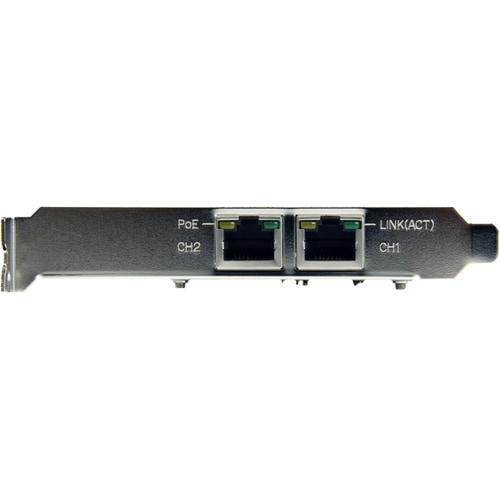

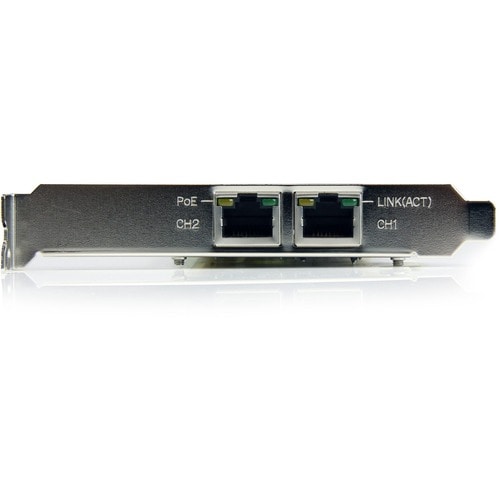

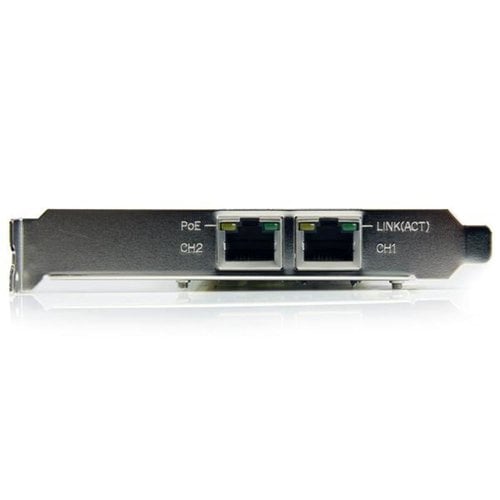

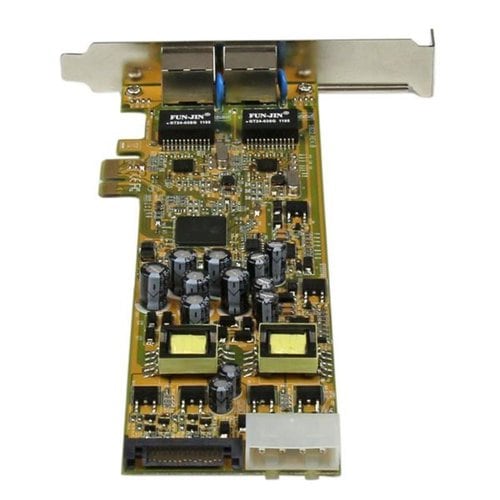

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations. This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points. Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL). The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Tech Specs
| USB | No |
|---|---|
| Width | 0.7" |
| XJACK | No |
| Height | 2.7" |
| Thickness | 700 mil |
| Brand Name | StarTech.com |
| InfiniBand | No |
| Card Height | Full-height |
| Form Factor | Plug-in Card |
| Serial Port | No |
| Ethernet AUI | No |
| Manufacturer | StarTech.com |
Show all 33 specsShow fewer
| Product Name | Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE |
|---|---|
| Product Type | Gigabit Ethernet Card |
| Chipset Model | RTL8111E |
| Host Interface | PCI Express |
| Network (RJ-45) | Yes |
| Device Supported | PC |
| Package Contents | <ul><li>Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE</li><li>1 x Low-Profile Bracket</li><li>1 x Driver CD</li><li>1 x Instruction Manual</li></ul> |
| PoE (RJ-45) Port | Yes |
| Country of Origin | Taiwan |
| Packaged Quantity | 1 Each |
| Network Technology | 10/100/1000Base-T |
| System Requirements | <ul> <li>Windows® 2000, XP, Vista, 7, 8, 8.1, 10</li> <li>Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 </li> <li>Mac OS X® 10.6 to 10.9</li> <li>Linux 2.4.x to 4.11.x LTS Versions Only </li> </ul> |
| Chipset Manufacturer | Realtek |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 3.70 oz |
| Total Number of Ports | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | ST2000PEXPSE |
| Manufacturer Website Address | http://www.startech.com |
| Number of Network (RJ-45) Ports | 2 |
