STARTECH.COM

2 PORT PCIE NETWORK CARD LAN GIGABIT ETHERNET NIC ADAPTER INTEL

SKU: TB7069VPN: ST2000SPEXI

2 PORT PCIE NETWORK CARD LAN GIGABIT ETHERNET NIC ADAPTER INTEL

Key Features

  • Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
  • Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging
  • Jumbo Frame support up to 9k bytes
  • Teaming Support
  • Supports Checksum Offload (IP, TCP, UDP), Transmit Segmentation Offload (TCP, UDP) and Large send Offload
  • Wake-on-LAN / Remote Wake-up support

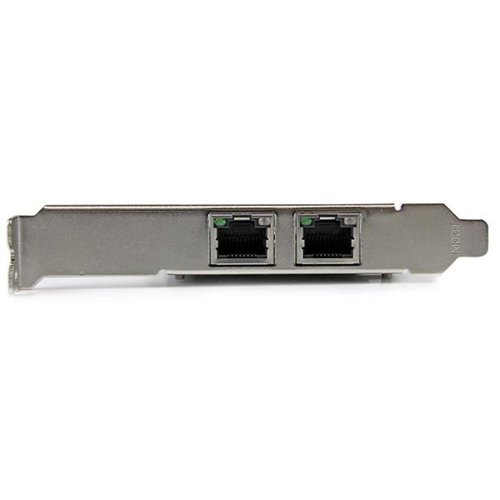

  • Configured with standard profile bracket, low profile/half-height bracket included
  • Supports Intel Virtualization Technology (VT-c, VMDq, SR-IOV)
  • Four-lane (x4) PCI Express compatible with x4, x8 and x16 PCIe slots
  • Compatible with PCI Express Base Specification 2.1 (backward compatible with 1.0a/1.1)
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

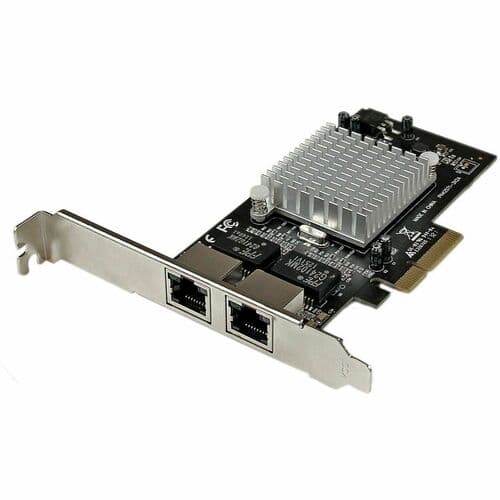

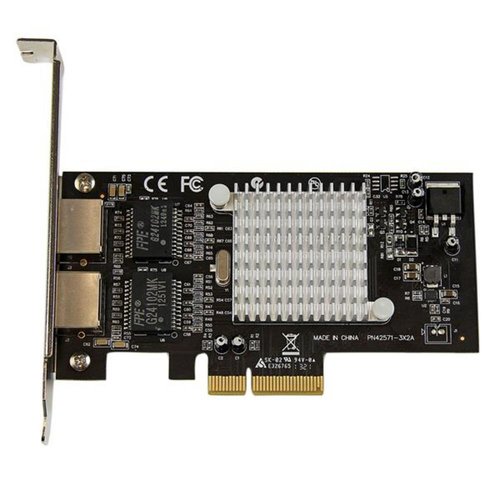

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation. This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration. Also useful for virtualization applications (check your VM software for chipset compatibility)or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

2 PORT PCIE NETWORK CARD LAN GIGABIT ETHERNET NIC ADAPTER INTEL specifications
USBNo
Depth2.6"
Width0.7"
XJACKNo
Height4.8"
Length2.6"
Brand NameStarTech.com
InfiniBandNo
Form FactorPlug-in Card
Serial PortNo
Ethernet AUINo
ManufacturerStarTech.com
Show all 35 specs
Product Name2 Port Network Card
Product TypeGigabit Ethernet Card
Chipset ModelI350-AM2
Host InterfacePCI Express x4
Network (RJ-45)Yes
Device SupportedComputer

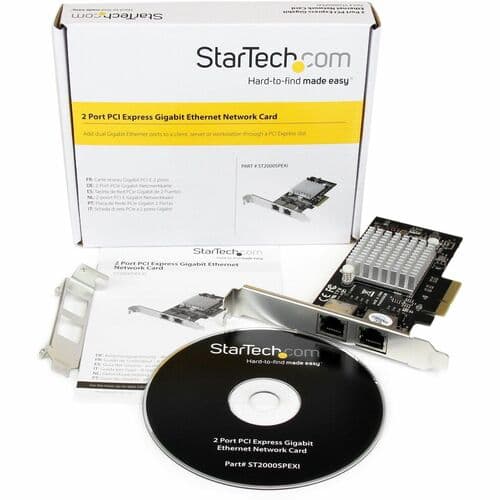

Package Contents<ul><li>2 Port Network Card</li><li>1 x Low Profile Bracket</li><li>1 x Driver CD</li><li>1 x Instruction Manual</li></ul>
PoE (RJ-45) PortNo
Country of OriginChina
Packaged Quantity1 Each
Network Technology10/100/1000Base-T
System Requirements<ul> <li>Windows® 7, 8, 8.1, 10</li> <li>Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019 </li> <li>Linux 2.4.x to 4.11.x LTS versions only </li> </ul>
Chipset ManufacturerIntel
Media Type SupportedTwisted Pair
Weight (Approximate)2.80 oz
Total Number of Ports2
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberST2000SPEXI
Maximum Data Transfer Rate8 Gbit/s
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
Number of Network (RJ-45) Ports2
