2 PORT HDMI KVM SWITCH USB AUDIO HDMI KVM SWITCH

SKU: CN1868VPN: SV231HDMIUA

Limited Stock

$218.31$201.30

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Supports push button and hotkey PC Switching
Integrated USB 2.0 hub - Share USB peripherals between PCs
Supports High Resolutions Digital video up to UXGA (1600x1200), WUXGA (1920x1200), and 1080p (1920x1080)
No software drivers required; OS independent
Supports Plug&Play operation
Supports both HDMI audio and 3.5mm analog audio
Independent Audio switching
Audible tone to indicate PC switching
User-defined scan time intervals

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone). A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases. Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers. The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Tech Specs

2 PORT HDMI KVM SWITCH USB AUDIO HDMI KVM SWITCH specifications
USB	Yes
HDMI	Yes
Depth	2.8"
Width	4.9"
Height	1.6"
Brand Name	StarTech.com
Form Factor	Desktop
Color Family	Black
Graphic Mode	WUXGA
Manufacturer	StarTech.com
Product Name	2-Port USB HDMI KVM Switch with Audio and USB 2.0 Hub
Product Type	KVM Switchbox

Show all 37 specs

Input Voltage	230 V AC
Product Color	Black
TAA Compliant	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/sv231hdmiua_weee.pdf

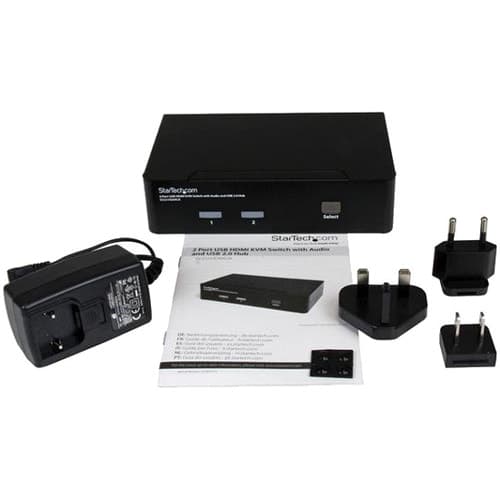

Package Contents	<ul> <li>2-Port USB HDMI KVM Switch with Audio and USB 2.0 Hub</li> <li>1 x User Manual</li> <li>1 x Power Adapter</li> <li>1 x Package of Rubber feet</li> </ul>
Country of Origin	Taiwan
Packaged Quantity	1 Each
REACH free of SVHC	Yes
Digital Audio/Video	Yes
Input Voltage Range	100V AC to 240V AC
Number of USB Ports	6
Number of HDMI Ports	3
Weight (Approximate)	1.40 lb
REACH Declaration URL	https://media.startech.com/cms/pdfs/sv231hdmiua_rohs.pdf
Additional Information	<ul><li>Eliminate duplicate display expense by sharing one set of peripherals and a single Display or TV between a Game console (Xbox360 or Playstation PS3) and PC.</li><li>Versatile audio support for both HDMI audio and 3.5mm analog audio.</li><li>Integrated USB 2.0 hub and Mic/Audio switching allows the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices.</li></ul>
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/sv231hdmiua_rohs.pdf
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Environmentally Friendly	Yes
Manufacturer Part Number	SV231HDMIUA
Maximum Video Resolution	1920 x 1200
Environmental Certification	EU RoHS
Manufacturer Website Address	http://www.startech.com
Number of Computers Supported	2
End of Life Manual Availability	Yes
Number of Local Users Supported	1
