2 PORT DUAL MONITOR DISPLAYPORT KVM SWITCH TWO DISPLAYS DP KVM
SKU: CT6683VPN: SV231DPDDUA
2 PORT DUAL MONITOR DISPLAYPORT KVM SWITCH TWO DISPLAYS DP KVM
Key Features
- Native dual DisplayPort connections - no adapter required
- Supports 2560x1600 @ 60Hz resolutions; beyond 1080p
- Maximum resolutions of 3840x2400 at lower refresh rates
- 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
- 3.5mm 2-channel stereo audio and microphone
- Integrated 2 port hub for USB 2.0 peripheral sharing
- No driver or software installation required
- OS Independent
- Hotkey and push-button switching
- Full plug-and-play support with USB console interfaces
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

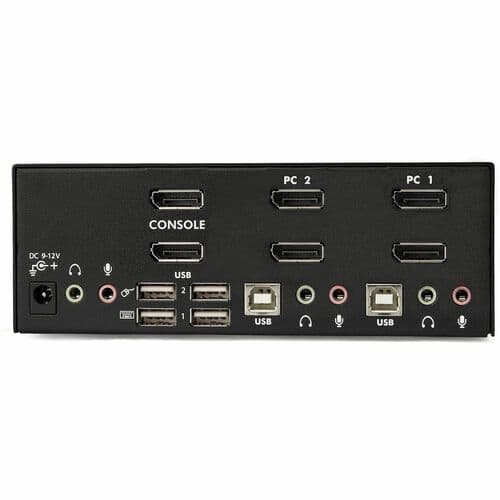

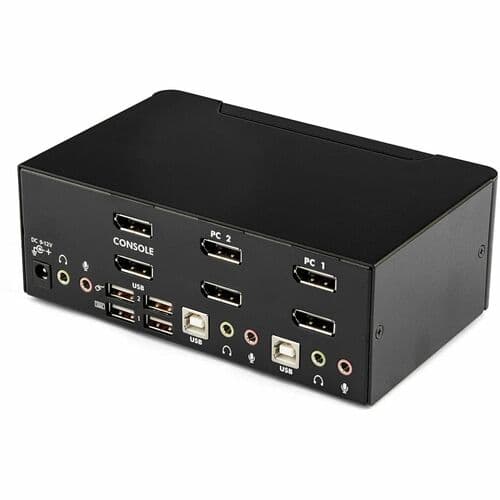

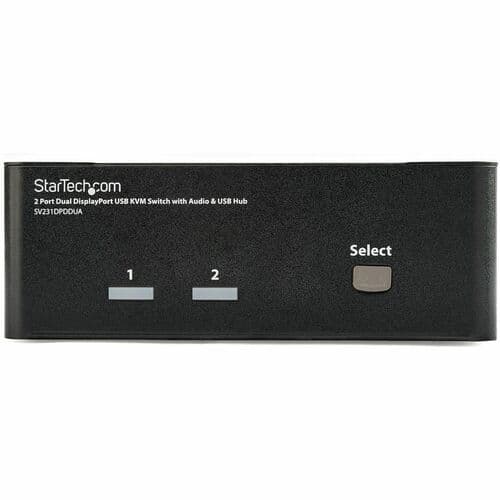

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter. Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input. Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
Tech Specs
| USB | Yes |
|---|---|
| Depth | 3.9" |
| Width | 6.3" |
| Height | 2.3" |
| Brand Name | StarTech.com |
| DisplayPort | Yes |
| Form Factor | Desktop |
| Color Family | Black |
| Graphic Mode | WQUXGA |
| Manufacturer | StarTech.com |
| Product Name | 2-port Dual Display DisplayPort KVM |
| Product Type | KVM Switchbox |
Show all 39 specsShow fewer
| Input Voltage | 120 V AC |
|---|---|
| Product Color | Black |
| Product Model | SV231DPDDUA |
| TAA Compliant | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/sv231dpddua_weee.pdf |

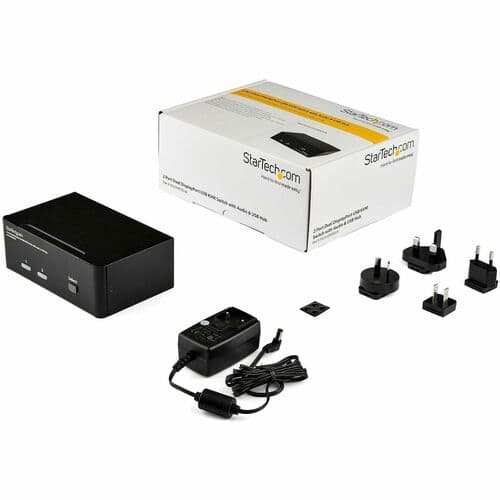

| Package Contents | <ul> <li>2-port Dual Display DisplayPort KVM</li> <li>1 x Universal Power Adapter (NA/EU/UK/AU)</li> <li>1 x Instruction Manual</li> </ul> |
| Product Material | Steel |
| Country of Origin | Taiwan |
| Packaged Quantity | 1 Each |
| Power Consumption | 18 W |
| REACH free of SVHC | Yes |
| Input Voltage Range | 110V AC to 240V AC |
| Number of USB Ports | 6 |
| Weight (Approximate) | 1.62 lb |
| Daisy Chain Supported | No |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/sv231dpddua_rohs.pdf |
| Number of DisplayPorts | 6 |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/sv231dpddua_rohs.pdf |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | SV231DPDDUA |
| Maximum Video Resolution | 3840 x 2400 |
| Environmental Certification | EU RoHS |
| Manufacturer Website Address | http://www.startech.com |
| Number of Computers Supported | 2 |
| End of Life Manual Availability | Yes |
| Number of Local Users Supported | 1 |
