2-PORT DP 1.4 KVM SWITCH - DUAL-MONITOR DISPLAYPORT KVM

SKU: KS0769VPN: P2CDD143-KVM-SWITCH

In Stock

$540.16$507.12

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

DUAL 8K 60HZ WITH HDR: Control two USB and DisplayPort-enabled desktops from a shared keyboard, mouse, audio device, and dual 8K 60Hz, 4K 144Hz, or 4K 120Hz DP 1.4 monitors; Supports HDR (up to 10-bit YCbCr 4:4:4); DSC required for maximum performance
FAST & COMPATIBLE SWITCHING: USB Emulation enables fast switching of up to four USB HID devices between two desktops/workstations; USB Emulation ensures compatibility with combo keyboards/mice; Works with any operating system and all hardware platforms
2X FASTER DATA TRANSFER: Two USB 3.2 Gen 2 (10Gbps) ports enable faster transfer speeds than USB Gen 1 (5Gbps) KVMs; Ideal for transferring large files or editing high-resolution photos/videos on external storage; 2x USB-C to USB-A 10Gbps cables included
MULTIPLE SWITCHING OPTIONS: Universal KVM Switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer, while controlling the other
DURABLE DESIGN: Durable steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability/reliability of the KVM; Sturdy construction is ideal for installation in various environments; 8kV Air/6kV Contact ESD protection; TAA Compliant

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.

Dual-8K 60Hz Displays & USB 10Gbps Hub Ports

This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.

Fast Switching with USB Emulation

USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.

Switching Options

This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

Tech Specs

2-PORT DP 1.4 KVM SWITCH - DUAL-MONITOR DISPLAYPORT KVM specifications
USB	Yes
Width	3.9"
Height	2.4"
Length	6.30"
Features	LED Indicator
Frequency	144 Hz
Brand Name	StarTech.com
Device Type	Desktop KVM
DisplayPort	Yes
Form Factor	Desktop
Graphic Mode	4K
Manufacturer	StarTech.com

Show all 35 specs

Product Name	KVM Switchbox
Product Type	KVM Switchbox
USB Standard	USB 3.2
Input Current	1 A
TAA Compliant	Yes
KVM Technology	Digital & Analog
Power Plug Type	Type M

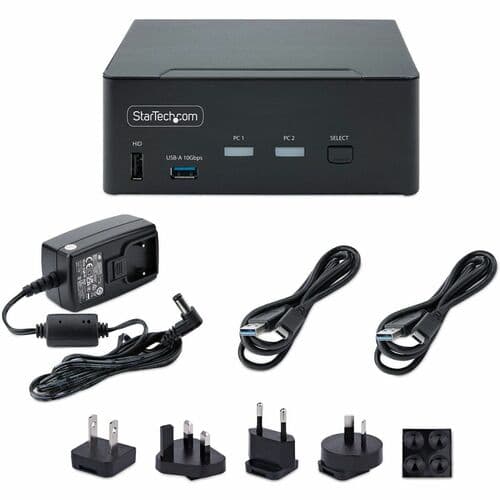

Package Contents	<ul><li> KVM Switchbox</li><li> 2 x USB-C to USB-A Cable</li><li> 1 x Universal Power Adapter (NA/EU/UK/ANZ)</li><li> 1 x Set of Rubber Feet</li><li> 1 x Quick-Start Guide</li></ul>
Packaged Quantity	1
Input Voltage Range	100-240 AC
Number of USB Ports	8
Weight (Approximate)	1.70 lb
Number of DisplayPorts	6
Connectivity Technology	Wired
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Manufacturer Part Number	P2CDD143-KVM-SWITCH
Maximum Video Resolution	7680 x 4320
Maximum Data Transfer Rate	1.25 GB/s
Manufacturer Website Address	http://www.startech.com
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Temperature	32°F (0°C)
Number of Computers Supported	2
Number of Local Users Supported	1
