1 PORT PCIE NETWORK CARD LAN GIGABIT ETHERNET NIC ADAPTER RJ45
$29.42
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
2 PORT 10GB PCIE NETWORK CARD LAN ETHERNET NIC ADAPTER INTEL CHIP
SKU: 3A0080VPN: ST20000SPEXI
2 PORT 10GB PCIE NETWORK CARD LAN ETHERNET NIC ADAPTER INTEL CHIP
Key Features
- Add two 100/1000/10Gbase-T RJ45 ports, providing cost-effective network connectivity for high bandwidth workstations and servers
- Intel X540 chipset with Intel Virtualization Technology for Connectivity
- Up to 20Gbps (full duplex) bandwidth per port
- Compliant with PCI Express Rev2.0 specification, using PCIe x8 (or higher) slot
- PXE network boot support
- Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Support for 802.3ad Link Aggregation
- Auto-MDIX support
- Autonegotiation support
- Up to 15K jumbo frame support
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

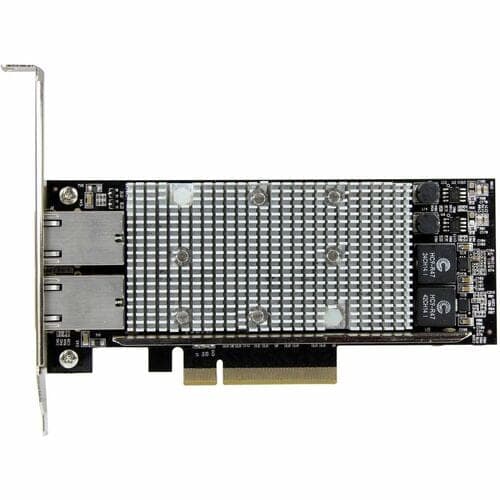

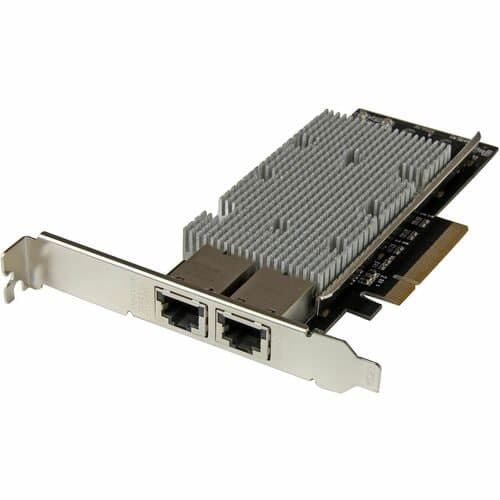

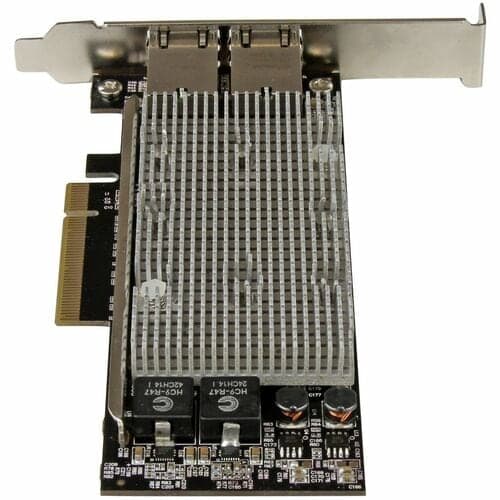

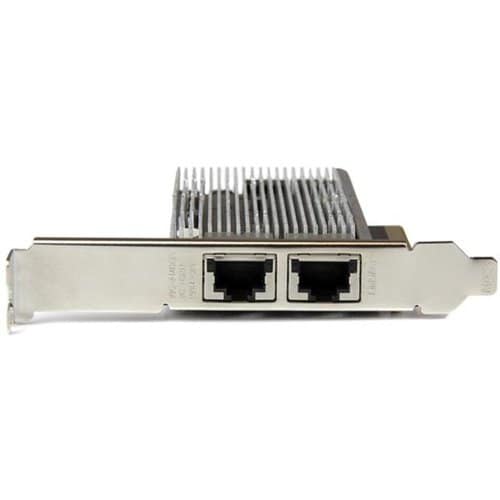

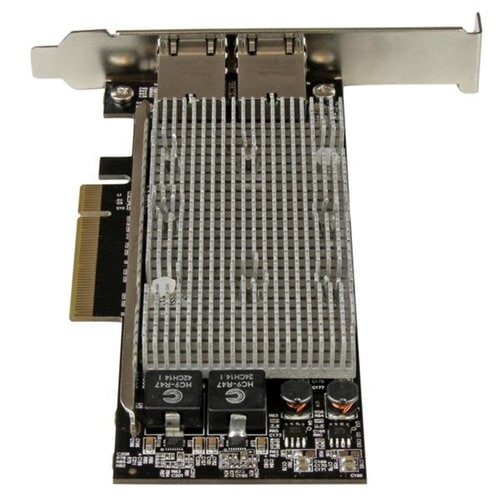

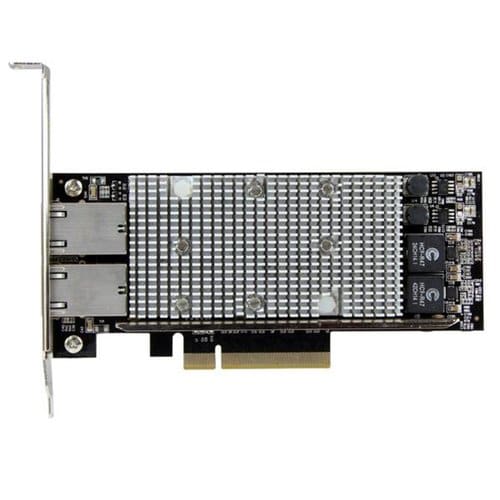

2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
Now, you can add 10 GbE networking, while minimizing your deployment costs. This 10Gbase-T network card (NIC) lets you add two RJ45 ports through a single PCI Express slot, to deliver reliable high-speed network connections to your workstations and servers without draining your budget.
Now, you can add 10 GbE networking, while minimizing your deployment costs. This 10Gbase-T network card (NIC) lets you add two RJ45 ports through a single PCI Express slot, to deliver reliable high-speed network connections to your workstations and servers without draining your budget.
- Add two 100/1000/10Gbase-T RJ45 ports, providing cost-effective network connectivity for high bandwidth workstations and servers
- Intel X540 chipset with Intel® Virtualization Technology for Connectivity
- Up to 20Gbps (full duplex) bandwidth per port
- Compliant with PCI Express Rev2.0 specification, using PCIe x8 (or higher) slot
- PXE network boot support
- Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Support for 802.3ad Link Aggregation
- Auto-MDIX support
- Autonegotiation support
- Up to 15K jumbo frame support
Tech Specs
| Depth | 6.4" |
|---|---|
| Width | 0.8" |
| Height | 4.7" |
| Brand Name | StarTech.com |
| Form Factor | Plug-in Card |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Product Name | 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip |
| Product Type | 10Gigabit Ethernet Card |
| Chipset Model | X540 |
| Product Color | Black |
| Host Interface | PCI Express x4 |
Show all 27 specsShow fewer
| Device Supported | Server |
|---|---|
| Package Contents | <ul> <li>2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip</li> <li>1 x low-profile Bracket</li> <li>1 x Instruction Manual</li> </ul> |
| Country of Origin | China |
| Packaged Quantity | 1 Each |
| Network Technology | 10GBase-T |
| System Requirements | <ul> <li>Windows® 7, 8, 8.1, 10</li> <li>Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019</li> <li>(Windows Drivers are supported in 64-bit only) </li> <li>Linux 2.4.x to 4.11.x LTS versions only</li> <li>ESXi 5.1/5.5 </li> </ul> |
| Chipset Manufacturer | Intel |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 5.50 oz |
| Total Number of Ports | 2 |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | ST20000SPEXI |
| Maximum Data Transfer Rate | 20 Gbit/s |
| Manufacturer Website Address | http://www.startech.com |
| Number of Network (RJ-45) Ports | 2 |
