2.5 HARD DRIVE MOUNTING BRACKET DUAL 2.5IN SATA HDD SSD ADAPTER KIT
SKU: TL3502VPN: BRACKET25X2
2.5 HARD DRIVE MOUNTING BRACKET DUAL 2.5IN SATA HDD SSD ADAPTER KIT
Key Features
- Mount up to two 2.5in drives into a single 3.5in bay
- SATA data and power cabling included
- Solid steel construction
- Vertical and horizontal drive mounting holes
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

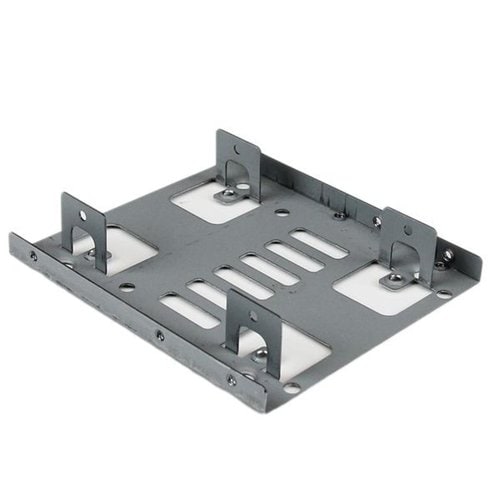

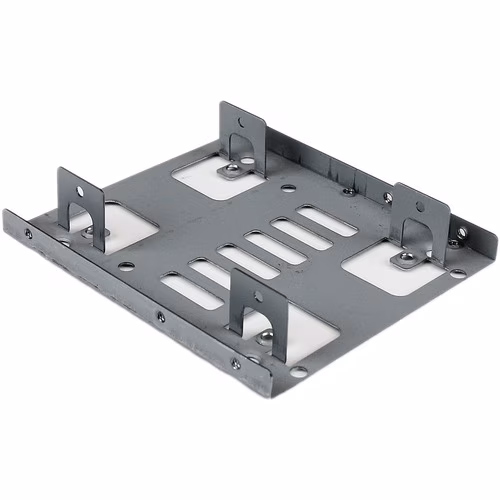

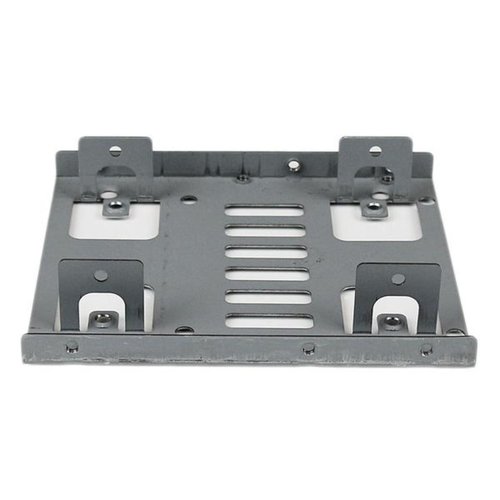

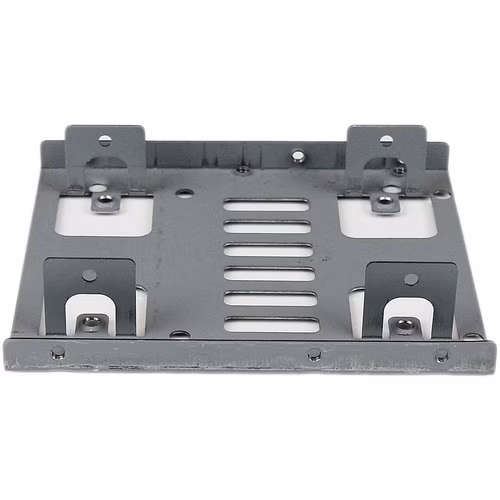

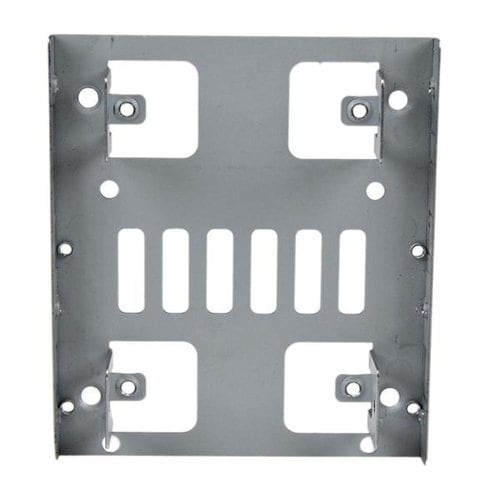

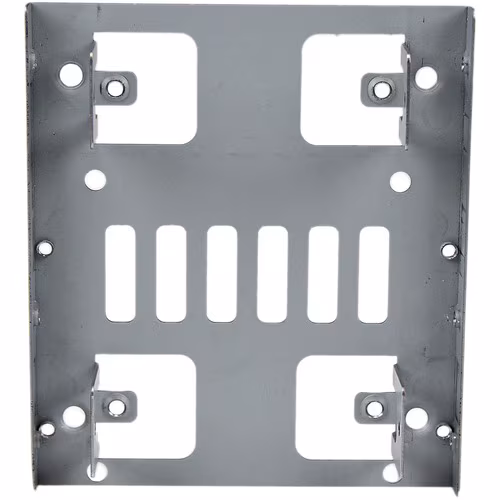

The BRACKET25X2 Dual hard drive mounting bracket kit lets you install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) into a single 3.5in mounting bay -- enabling you to significantly increase the performance of your desktop by adding the speed of a 2.5in SSD. Maximize the internal mounting space of your computer, by installing two 2.5in hard drives in the same 3.5in bay. The bracket can be used with SATA hard drives and solid states For a hassle-free installation, the hard drive mounting kit includes all required data and power cabling for both SATA drives. Plus, the bracket can support IDE drives when using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044). The BRACKET25X2 features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Tech Specs
| Depth | 4.6" |
|---|---|
| Width | 4" |
| Height | 0.9" |
| Brand Name | StarTech.com |
| Form Factor | Internal |
| Color Family | Silver |
| Manufacturer | StarTech.com |
| Product Name | Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket |
| Product Type | Drive Bay Adapter |
| Wireless LAN | No |
| Product Color | Silver |
| TAA Compliant | Yes |
Show all 30 specsShow fewer
| Drive Interface | SATA/600 |
|---|---|
| Package Contents | <ul> <li>Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket</li> <li>1 x Drive Mounting Screw Kit</li> <li>4 x Flat Screws and Washers (Bottom Drive)</li> <li>4 x M3x5mm Screws (Top Drive)</li> <li>4 x 6-32 Screws (Case Mount)</li> <li>2 x SATA Data Cables</li> <li>1 x SATA Power Y Cable</li> <li>1 x Quick-Start Guide</li> </ul> |
| Product Material | Steel |
| Country of Origin | Taiwan |
| Packaged Quantity | 1 Each |
| Number of 2.5" Bays | 2 |
| Weight (Approximate) | 2.60 oz |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | BRACKET25X2 |
| Compatible Drive Bay Width | 3.5" |
| Environmental Certification | EU RoHS |
| Manufacturer Website Address | http://www.startech.com |
| Number of Total Expansion Bays | 2 |
| Number of Hard Drives Installed | No |
| Number of Hard Drives Supported | 2 |
| Number of Solid State Drive Installed | No |
| Number of Solid State Drive Supported | 2 |
