SIIG
HDMI 2.0 4K HDR REPEATER 20M
$28.49
California Proposition 65 Warning
Cancer
1X2 4K 60HZHDMISPLITTEROVERCAT6 EXTENDER W/ LOOPOUT IR ARC RS-232
SKU: 06YQ35VPN: CE-H27911-S1
1X2 4K 60HZHDMISPLITTEROVERCAT6 EXTENDER W/ LOOPOUT IR ARC RS-232
Key Features
- 4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 2 displays
- Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR
- HDMI Loopout + Extend 2 Displays - Supports one HDMI loop-out for additional local display connections and extender 2 receivers for HDTV or Projector via Cat6/7 cable

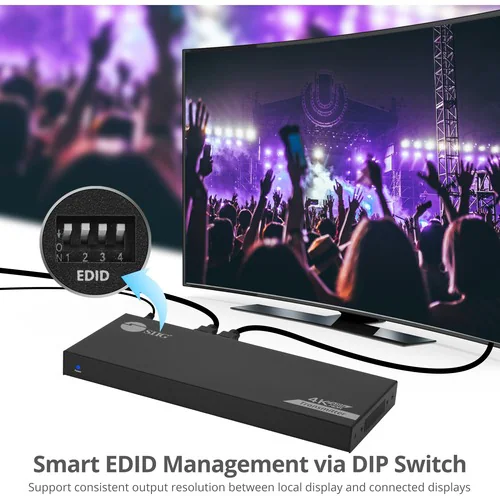

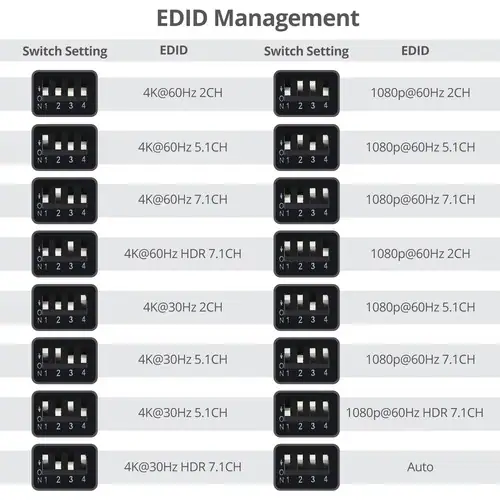

- EDID Management - Support EDID management capability to controls the resolution output to the display(s)

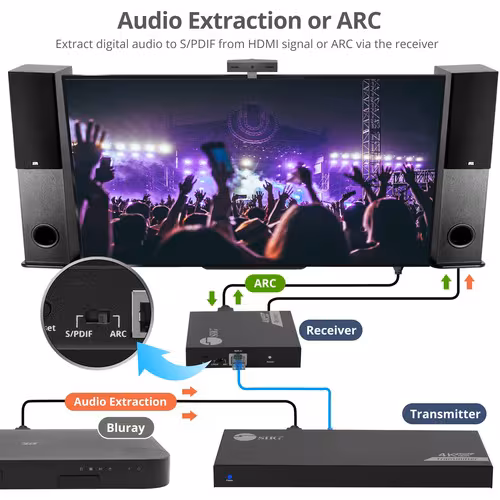

- Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
- IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
- ARC and Audio Extraction - Through the Toslink connection of the Receiver (RX)
- RS-232 Control - Support RS-232 command control in the Transmitter
- Protection - Lightning Protection, Surge Protection, ESD Protection

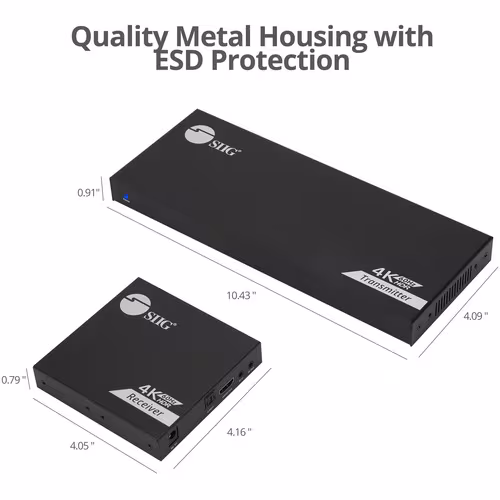

- High Quality Wall mount Design - High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Multiple Connectivity Ports
Comes with one HDMI video input port, one HDMI video loop-out port, two HDMI video output ports, four RJ45 network ports, three 3.5mm IR emitter ports, three 3.5mm IR receiver ports, two S/PDIF ports, one RS-232 terminal block, one DIP switch, three reset buttons, two audio slide switches, one DC power jack (12V/2A) for TX, two DC power jacks (5V/2A) for RXs
Applications
- Meeting room
- Lecture hall
- Educational facilities
- Multimedia education
- Home theater
- Restaurant
- Shopping center
- Library
- Show room
Tech Specs
| HDMI In | Yes |
|---|---|
| HDMI Out | Yes |
| Frequency | 60 Hz |
| Brand Name | SIIG |
| Manufacturer | SIIG, Inc |
| Product Name | 1x2 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 |
| Product Type | Video Extender Transmitter/Receiver |
| Product Color | Black |
| Graphics Modes | 4K |
| Receiver Depth | 4.04" |
| Receiver Width | 4.15" |
| Network (RJ-45) | Yes |
Show all 34 specsShow fewer
| Receiver Height | 0.79" |
|---|---|

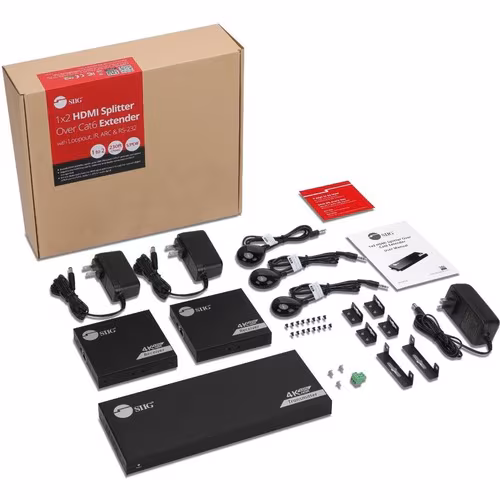

| Package Contents | <ul> <li>1 x Transmitter</li> <li>2 x Receiver</li> <li>3 x Power Adapter</li> <li>1 x IR Blaster extension cable </li> <li>2 x IR Receiver extension cable</li> <li>Terminal block</li> <li>Mounting kit</li> <li>User Manual</li> </ul> |
| Country of Origin | China |
| Transmitter Depth | 4.09" |
| Transmitter Width | 10.43" |
| Transmitter Height | 0.91" |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 3 |
| Connectivity Technology | Wired |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE-H27911-S1 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Operating Distance | 229.66 ft |
| Twisted Pair Cable Standard | Category 7 |
| Manufacturer Website Address | http://www.siig.com |
| Receiver Weight (Approximate) | 8.64 oz |
| Number of Network (RJ-45) Ports | 4 |
| Transmitter Weight (Approximate) | 1.43 lb |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 2 |
