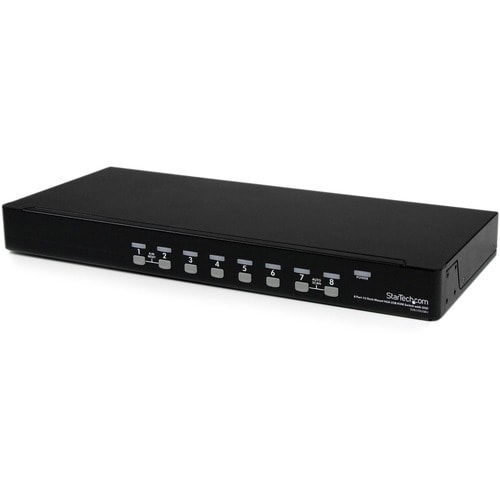

STARTECH.COM

1U 8 PORT USB VGA KVM SWITCH USB VGA RACKMOUNT KVM OSD

SKU: CN6219VPN: SV831DUSBU

1U 8 PORT USB VGA KVM SWITCH USB VGA RACKMOUNT KVM OSD

Key Features

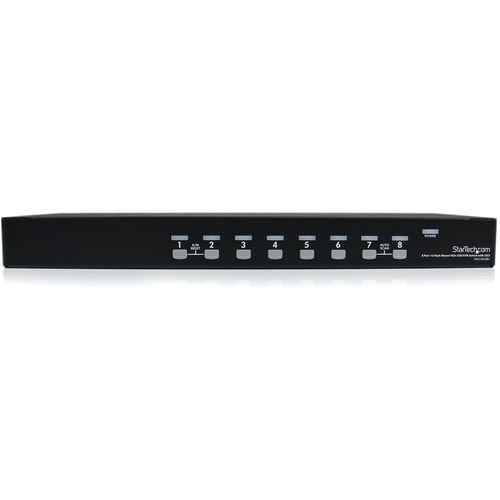

  • Supports Hotkey and front panel push-button switching
  • OSD security allows each PC to be password protected
  • Identify and select computers by names assigned via the OSD menu
  • Auto-scan function automatically selects computer sequentially
  • Cascade configuration expands system capability
  • USB console interface
  • Plug-and-play system configuration
  • Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
  • Supported 4 : 3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
  • USB Keyboard and Mouse combo supported on one USB connection
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor. The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD). A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch. The SV831DUSBU onlyworks with specific 2-in-1 VGA and USB cables (soldseparately), a list ofStarTech.com approved cables are below: 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15ft Ultra Thin USB VGA 2-in-1 KVM Cable This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Tech Specs

1U 8 PORT USB VGA KVM SWITCH USB VGA RACKMOUNT KVM OSD specifications
USBYes
Width7.1"
Height1.8"
Length17.20"
Brand NameStarTech.com
Form FactorRack-mountable
Rack Height1U
Color FamilyBlack
ManufacturerStarTech.com
Product Name8 Port 1U Rack Mount USB KVM Switch with OSD
Product TypeKVM Switchbox
Product ColorBlack
Show all 24 specs
TAA CompliantYes
Package Contents<li>1 x 8 Port USB KVM Switch</li><li>2 x Mounting Brackets</li><li>1 x Bag of Screws</li><li>1 x Pack Rubber Feet</li><li>1 x Universal Power Adapter (NA/UK/EU)</li><li>1 x User Manual </li>
Country of OriginTaiwan
Packaged Quantity1 Each
Number of USB Ports2
Weight (Approximate)4.85 lb
Daisy Chain SupportedYes
Environmentally FriendlyYes
Manufacturer Part NumberSV831DUSBU
Maximum Video Resolution1920 x 1440
Manufacturer Website Addresshttp://www.startech.com
Number of Computers Supported8
