STARTECH.COM

1U 8 PORT USB VGA KVM SWITCH USB AUDIO VGA RACKMOUNT KVM

SKU: CN6221VPN: SV831DUSBAU

1U 8 PORT USB VGA KVM SWITCH USB AUDIO VGA RACKMOUNT KVM

Key Features

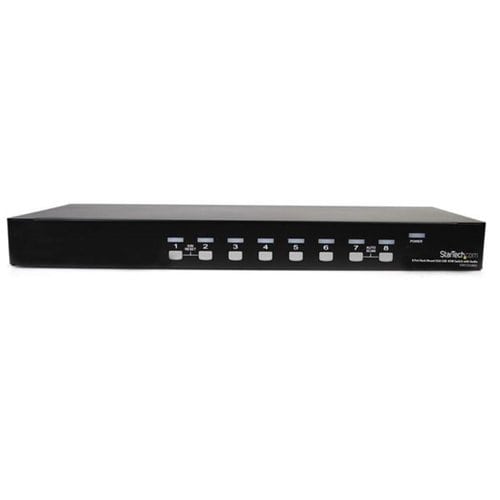

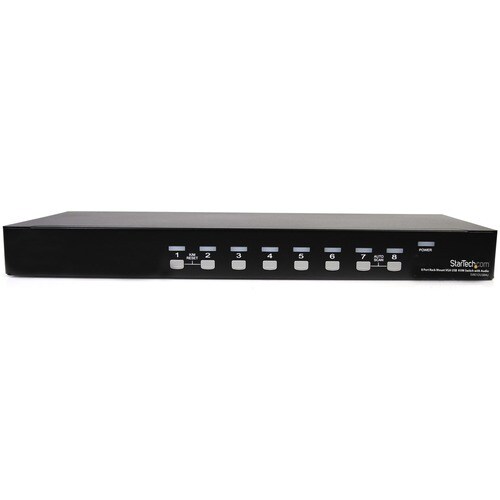

  • Supports Hotkey and front panel push-button switching
  • Identify and select computers by names assigned via the OSD menu
  • OSD security allows each PC to be password protected
  • Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
  • Supported 4:3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
  • Auto-scan function automatically selects computer sequentially
  • Cascade configuration expands system capability
  • USB console interface
  • Plug-and-play system configuration
  • USB Keyboard and Mouse combo supported on one USB connection
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

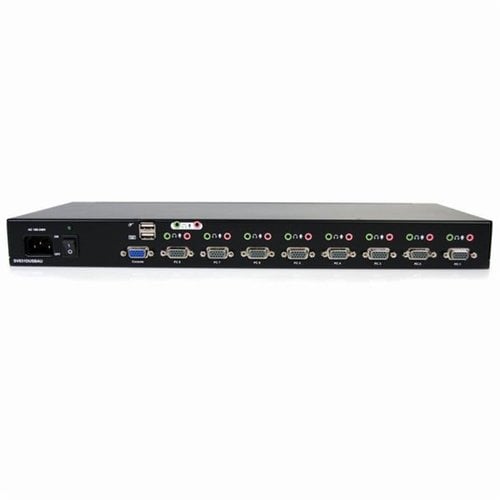

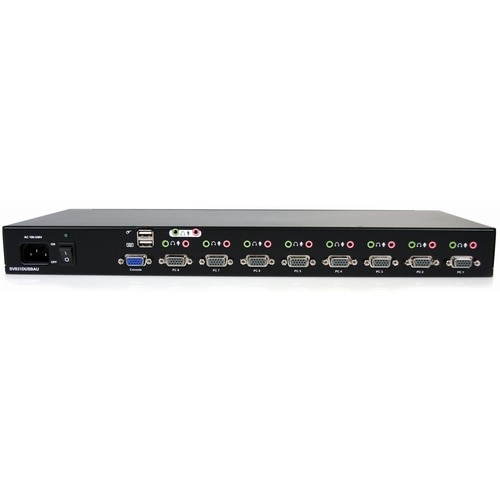

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports. Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary. To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. The SV831DUSBAU onlyworks with specific 2-in-1 VGA and USB cables (soldseparately), a list ofStarTech.com approved cables are below: 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15ft Ultra Thin USB VGA 2-in-1 KVM Cable

Tech Specs

1U 8 PORT USB VGA KVM SWITCH USB AUDIO VGA RACKMOUNT KVM specifications
USBYes
VGAYes
Depth7.1"
Width21.3"
Height1.8"
Brand NameStarTech.com
Form FactorRack-mountable
Rack Height1U
Color FamilyBlack
ManufacturerStarTech.com
Product LineStarView
Product Name8 Port Rack Mount USB VGA KVM Switch w/ Audio
Show all 37 specs
Product TypeKVM Switchbox
Input Voltage230 V AC
Product ColorBlack
TAA CompliantYes
Product FamilyStarView
WEEE Statementhttps://media.startech.com/cms/pdfs/sv831dusbau_weee.pdf
Package Contents<ul> <li>8 Port Rack Mount USB VGA KVM Switch w/ Audio</li> <li>2 x Mounting Brackets</li> <li>8 x 6ft. Green Audio Cables and Red Microphone Cables (16 in Total)</li> <li>4 x Foot Pad</li> <li>1 x Power Cord</li> <li>1 x User Manual</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Each
REACH free of SVHCYes
Input Voltage Range110V AC to 240V AC
Number of USB Ports2
Number of VGA Ports9
Weight (Approximate)5.74 lb
Daisy Chain SupportedYes
REACH Declaration URLhttps://media.startech.com/cms/pdfs/sv831dusbau_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/sv831dusbau_rohs.pdf
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberSV831DUSBAU
Maximum Video Resolution1920 x 1440
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
Number of Computers Supported8
End of Life Manual AvailabilityYes
