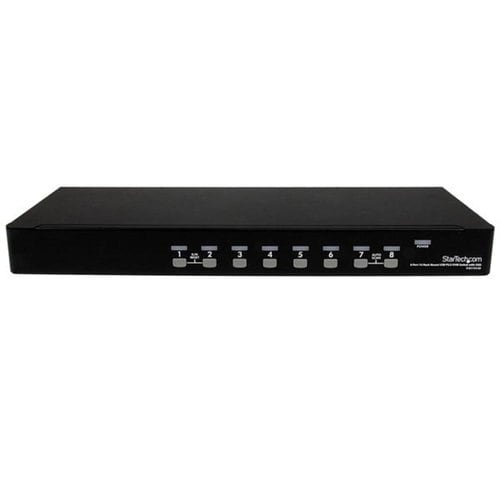

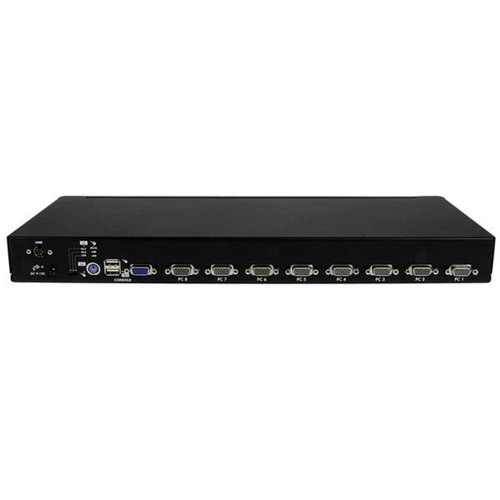

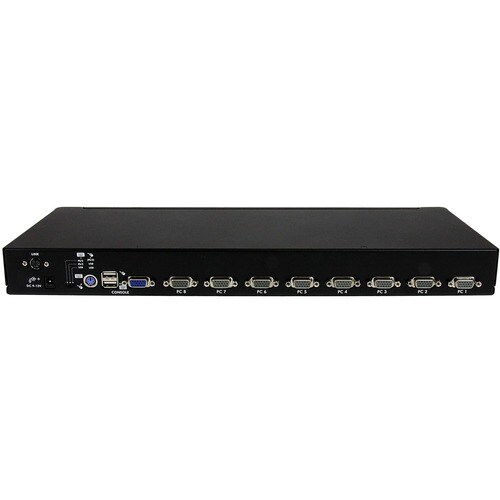

STARTECH.COM

1U 8 PORT USB VGA KVM SWITCH PS2 USB VGA RACKMOUNT KVM

SKU: M02997VPN: SV831DUSB

1U 8 PORT USB VGA KVM SWITCH PS2 USB VGA RACKMOUNT KVM

Key Features

  • Connect USB and PS/2 based computer systems
  • OS independent No software or drivers required
  • Auto-scan function cycles through computers sequentially
  • Cascade configuration expands system capability
  • Front panel push-buttons and Hot-key functions allow for easy switching
  • On Screen Display (OSD) supports naming connected computers
  • USB & PS2 console interfaces for keyboard and mouse
  • OSD security option allows selected PCs to be password protected from unauthorized use
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The SV831DUSB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor. The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options. A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch. This high quality USB PS/2 KVM Switch is TAA compliant and backed by a StarTech.com 3-year warranty with free lifetime technical support. The SV831DUSB onlyworks with specific 2-in-1 VGA and USB cables (soldseparately), a list ofStarTech.com approved cables are below: 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15ft Ultra Thin USB VGA 2-in-1 KVM Cable

Tech Specs

1U 8 PORT USB VGA KVM SWITCH PS2 USB VGA RACKMOUNT KVM specifications
Depth17.2"
Width7.1"
Height1.8"
PS/2 PortYes
Brand NameStarTech.com
Form FactorDesktop
Rack Height1U
Color FamilyBlack
ManufacturerStarTech.com
Product LineStarView
Product NameStarView USB Console KVM Switch with OSD
Product TypeKVM Switchbox
Show all 26 specs
Input Voltage9 V DC
Product ColorBlack
TAA CompliantYes
Product FamilyStarView
Package Contents<ul> <li>StarView USB Console KVM Switch with OSD</li> <li>1 x instruction Manual</li> <li>4 x Foot Pads</li> <li>1 x universal power adapter (NA/EU/UK)</li> <li>1 x PS/2 keyboard and mouse Y cable</li> <li>2 x Mounting Brackets</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Each
Weight (Approximate)6.39 lb
Daisy Chain SupportedYes
Environmentally FriendlyYes
Manufacturer Part NumberSV831DUSB
Maximum Video Resolution1920 x 1440
Manufacturer Website Addresshttp://www.startech.com
Number of Computers Supported8
