STARTECH.COM

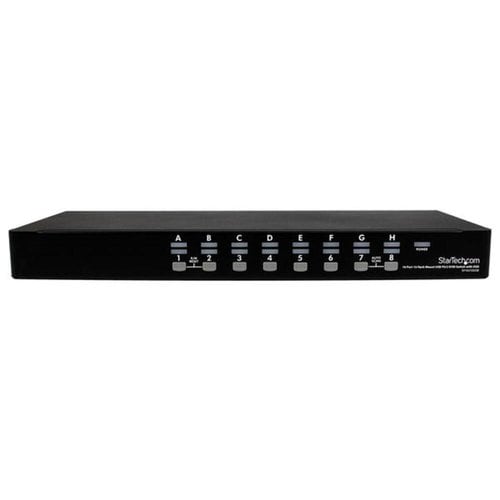

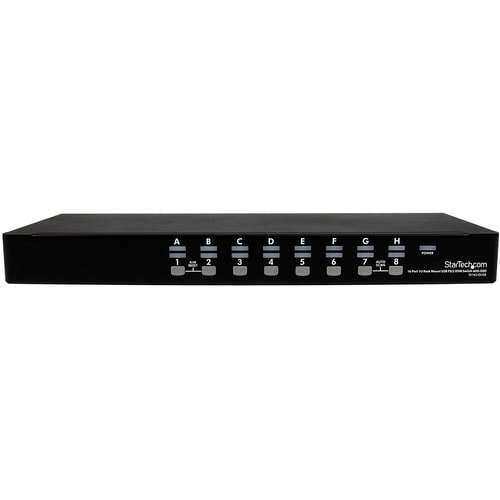

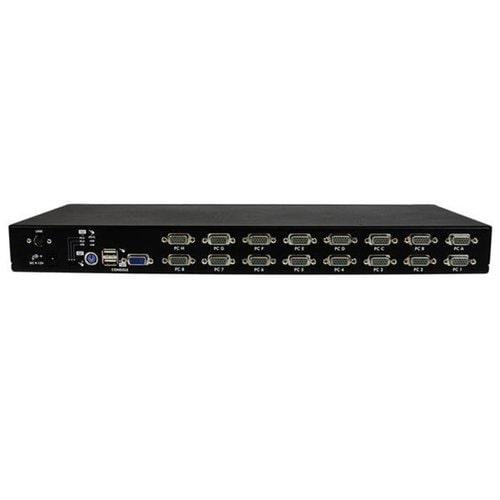

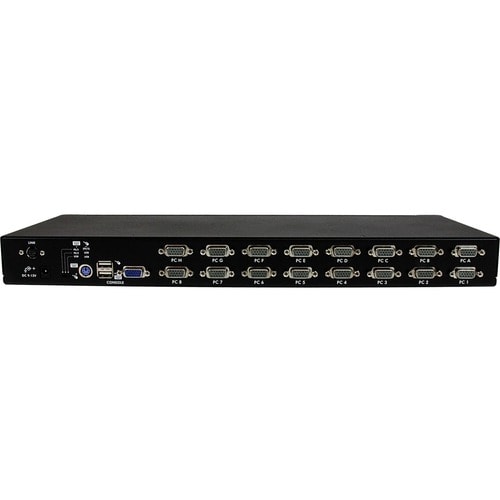

1U 16 PORT USB VGA KVM SWITCH USB VGA RACKMOUNT KVM OSD

SKU: M03011VPN: SV1631DUSB

1U 16 PORT USB VGA KVM SWITCH USB VGA RACKMOUNT KVM OSD

Key Features

  • Connect USB and PS/2 based computer systems
  • OS independent No software or drivers required
  • Auto-scan function cycles through computers sequentially
  • Cascade configuration expands system capability
  • Front panel push-buttons and Hot-key functions allow for easy switching
  • On Screen Display (OSD) supports naming connected computers
  • USB & PS2 console interfaces for keyboard and mouse
  • OSD security option allows selected PCs to be password protected from unauthorized use
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The SV1631DUSBGB 16 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 16 USB or PS/2 connected computers from a single keyboard, mouse and monitor. The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options. A suitable addition to server room operations, the 16 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. This high quality USB PS/2 KVM Switch is TAA compliant and backed by a StarTech.com 3-year warranty with free lifetime technical support. The SV1631DUSB onlyworks with specific 2-in-1 VGA and USB cables (soldseparately), a list ofStarTech.com approved cables are below: 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15ft Ultra Thin USB VGA 2-in-1 KVM Cable

Tech Specs

1U 16 PORT USB VGA KVM SWITCH USB VGA RACKMOUNT KVM OSD specifications
Depth17.2"
Width7.1"
Height1.8"
PS/2 PortYes
Brand NameStarTech.com
Form FactorRack-mountable
Rack Height1U
Color FamilyBlack
ManufacturerStarTech.com
Product Name16 Port 1U Rackmount USB PS/2 KVM Switch
Product TypeKVM Switchbox
Input Voltage120 V AC
Show all 25 specs
Product ColorBlack
TAA CompliantYes
Package Contents<ul> <li>16 Port 1U Rackmount USB PS/2 KVM Switch</li> <li>2 x Mounting Brackets</li> <li>1 x PS/2 keyboard and mouse Y cable</li> <li>1 x Power Adapter</li> <li>4 x foot pads</li> <li>1 x User Manual</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Each
Input Voltage Range110V AC to 240V AC
Weight (Approximate)6.83 lb
Daisy Chain SupportedYes
Environmentally FriendlyYes
Manufacturer Part NumberSV1631DUSB
Maximum Video Resolution1920 x 1440
Manufacturer Website Addresshttp://www.startech.com
Number of Computers Supported16
