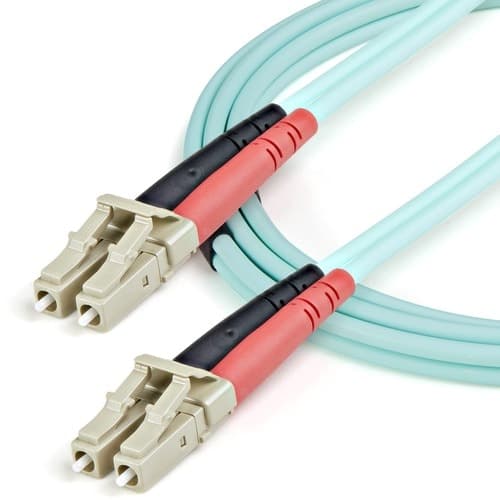

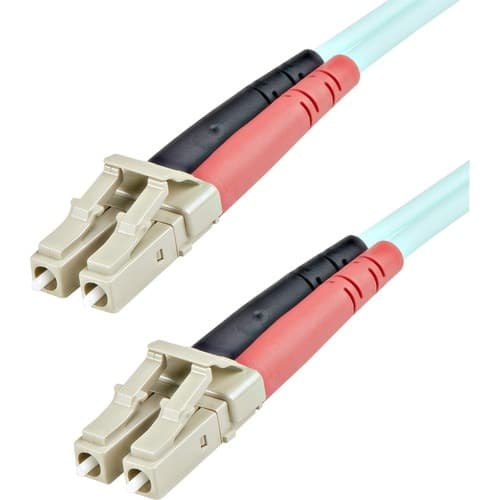

1M MULTIMODE FIBER OPTIC CABLE OM3 LC/LC 50/125 LSZH FIBER CABLE

SKU: Q16739VPN: A50FBLCLC1

In Stock

$21.51$20.25

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
SPECS: 1m (3.3ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The A50FBLCLC1 1m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

Tech Specs

1M MULTIMODE FIBER OPTIC CABLE OM3 LC/LC 50/125 LSZH FIBER CABLE specifications
Features	Corrosion Resistant
Brand Name	StarTech.com
Cable Type	Fiber Optic
Jacket Type	LSZH
Cable Length	3.28 ft
Color Family	Green
Manufacturer	StarTech.com
Product Name	Fiber Optic Duplex Patch Network Cable
Product Type	Network Cable
Product Color	Aqua
Shipping Width	7.87"
WEEE Statement	https://media.startech.com/cms/pdfs/a50fblclc1_weee.pdf

Show all 37 specs

Shipping Height	0.55"
Device Supported	Hub
Fiber Optic Mode	Multi-mode
Country of Origin	China
Packaged Quantity	1 Each
Data Transfer Rate	10 Gbit/s
REACH free of SVHC	Yes
Cable Characteristic	Patch Cable
Weight (Approximate)	0.03 lb
REACH Declaration URL	https://media.startech.com/cms/pdfs/a50fblclc1_rohs.pdf
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/a50fblclc1_rohs.pdf
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Environmentally Friendly	Yes
Manufacturer Part Number	A50FBLCLC1
Connector Type on First End	LC Network - Male
Environmental Certification	EU RoHS
Connector Type on Second End	LC Network - Male
Manufacturer Website Address	http://www.startech.com
Connector Gender on First End	Male
Shipping Weight (Approximate)	0.80 oz
Connector Gender on Second End	Male
Connector on First End Details	2 x LC Network - Male
Connector on Second End Details	2 x LC Network - Male
End of Life Manual Availability	Yes
Fiber Optic Cable Core/Cladding Specification	50/125 µm
