ADDON

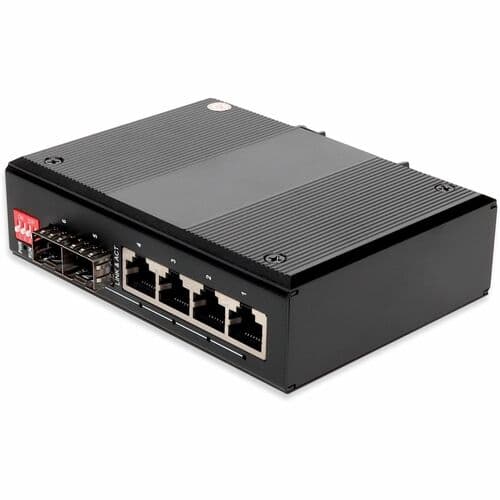

1GBS 4 RJ-45 TO 2 SFP PORT INDUSTRIAL MEDIA CONVERTER

SKU: 380J26VPN: ADD-IMGMC-4RJ2SFP

1GBS 4 RJ-45 TO 2 SFP PORT INDUSTRIAL MEDIA CONVERTER

Key Features

  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Expand your network capabilities with this 4 transceiver/media converter
  • With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
  • The Rail-mountable provides convenient installation
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This is a six port media converter that converts and supports four 10/100/1000Base-TX(RJ-45) to two 1000Base-X via 2 open SFP port connectors. The open SFP ports allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from four 10/100/1000Base-TX(RJ-45) to two 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. All the four 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.

Tech Specs

1GBS 4 RJ-45 TO 2 SFP PORT INDUSTRIAL MEDIA CONVERTER specifications
Depth3.8"
Width9.5"
Height5.5"
Brand NameAddOn
Form FactorRail-mountable
ManufacturerAddOn
Power SourceAC
Product NameTransceiver/Media Converter
Product TypeTransceiver/Media Converter
Compatibility<li>Compatible OEM: Industry Standard</li>
TAA CompliantNo
Network (RJ-45)Yes
Show all 32 specs
Application/UsageIndustrial
Country of OriginChina
Packaged Quantity1
Network Technology1000Base-X
Ethernet TechnologyGigabit Ethernet
Expansion Slot TypeSFP
Number of SFP Slots2
Plug/Connector TypeTerminal Block
Fiber Mode SupportedSingle-mode
Media Type SupportedOptical Fiber
Weight (Approximate)8 oz
Total Number of Ports4
Additional Information<li>Management Type: Managed</li><li>IEEE Standard: 802.3af</li>
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Manufacturer Part NumberADD-IMGMC-4RJ2SFP
Maximum Data Transfer Rate1 Gbit/s
Maximum Distance Supported0.10 km
Manufacturer Website Addresshttp://www.addoncomputer.com
Number of Network (RJ-45) Ports4
Total Number of Expansion Slots2
