1GBS 1 RJ-45 TO 1 SC PORT MEDIA CONVERTER
SKU: 6E3866VPN: ADD-MCC1GMM5M

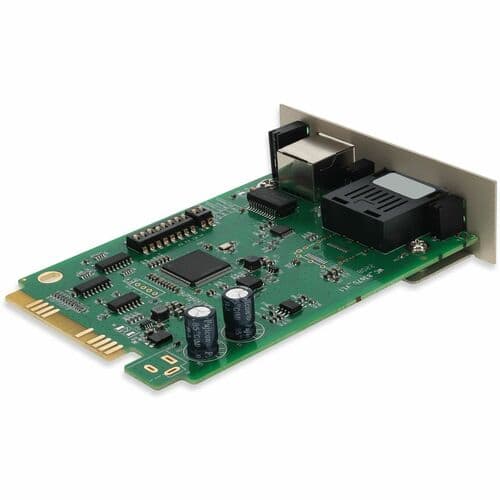

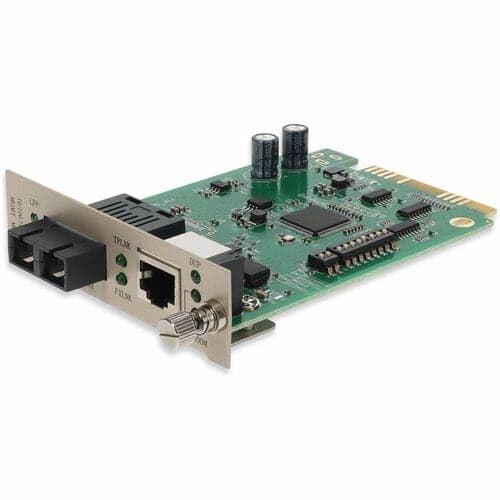

1GBS 1 RJ-45 TO 1 SC PORT MEDIA CONVERTER
Key Features
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- Takes minimal energy and effort to get installed internally
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
This is a media converter card that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-SX(SC) via a 850nm multi-mode fiber (MMF) SC connector, which allows distance reach up to 550m. It provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper. This device can be managed if used in our managed rack system or unmanaged with our unmanaged rack system or standalone chassis enclosure. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Tech Specs
| Depth | 0.7" |
|---|---|
| Width | 3.5" |
| Height | 4.5" |
| Brand Name | AddOn |
| Form Factor | Internal |
| Manufacturer | AddOn |
| Product Name | Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Compatibility | <li>Compatible OEM: Industry Standard</li> |
| Input Voltage | 110 V AC |
| Product Model | ADD-MCC1GMM5M |
| TAA Compliant | No |
Show all 33 specsShow fewer
| Network (RJ-45) | Yes |
|---|---|
| Application/Usage | Network |
| Country of Origin | China |
| Packaged Quantity | 1 |
| Network Technology | 1000Base-SX |
| Number of SC Ports | 1 |
| Ethernet Technology | Gigabit Ethernet |
| Fiber Mode Supported | Multi-mode |
| Media Type Supported | Optical Fiber |
| Weight (Approximate) | 8 oz |
| Total Number of Ports | 2 |
| Additional Information | <li>Management Type: Managed</li><li>for Rack or Standalone Systems</li> |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | ADD-MCC1GMM5M |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 0.55 km |
| Fiber Optic Cable Wavelength | 850 nm |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Number of Network (RJ-45) Ports | 1 |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
