163IN PRECONFIGURED 4K ALL-IN-O WITH 3840X2160 3840HZ HDMI

SKU: Z34567VPN: LDP163-091C

Limited Stock

$120,447.75

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

STUNNING 4K UHD RESOLUTION: 4K clarity, vibrant colors, and sharp visuals in any lighting environment.
DURABLE COB TECHNOLOGY: Tight pixel pitch, IP54 dust/moisture resistance, and IK08 impact protection.
ALL IN ONE INTEGRATION: Built in power, control, and image systems for quick, simple installation.
FLEXIBLE CONTROL BAR PLACEMENT: Detachable control bar can be mounted separately (up to 30 ft away) or hidden behind the dvLED with optional accessory kits.
EASY FRONT SERVICEABILITY: Front serviceable LED modules allow for fast maintenance with included suction tool.

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

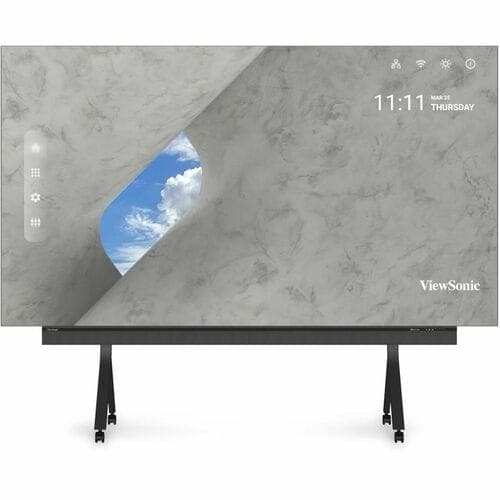

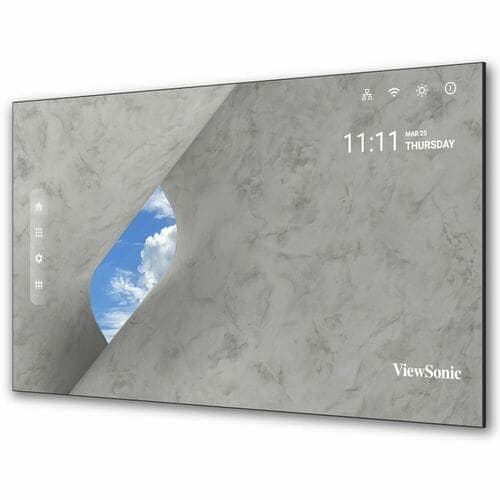

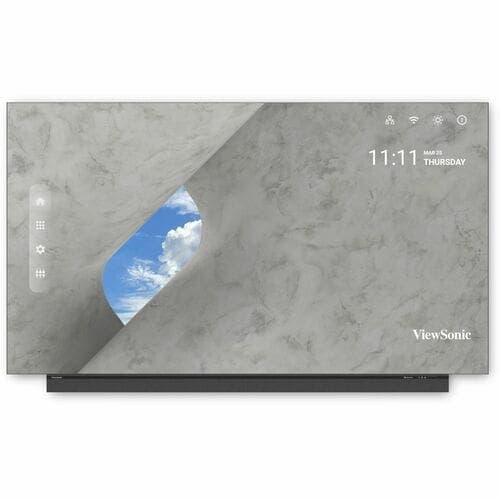

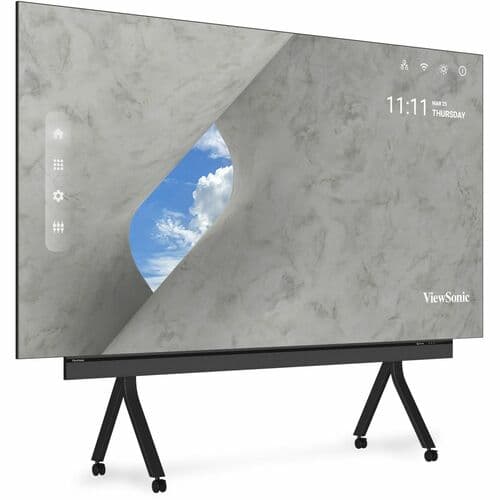

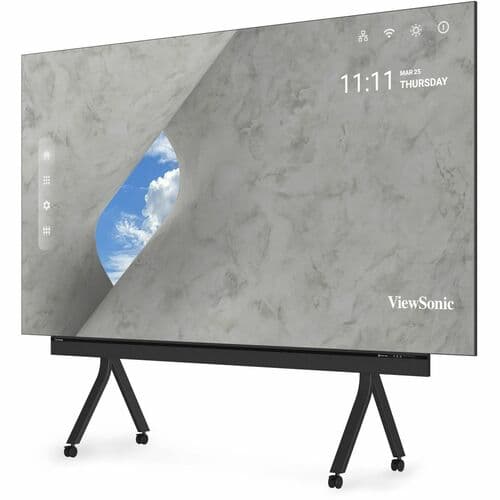

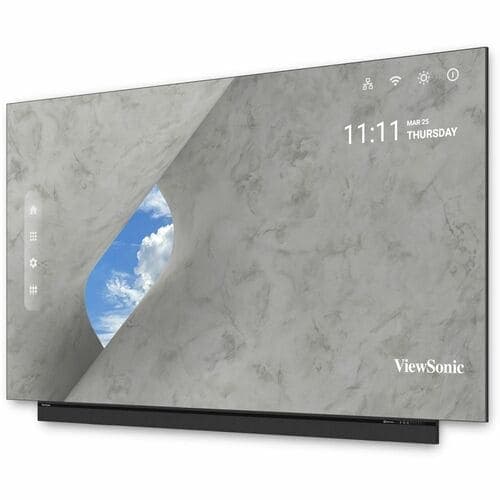

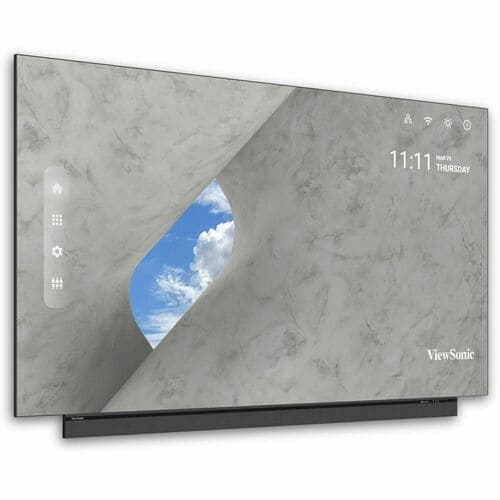

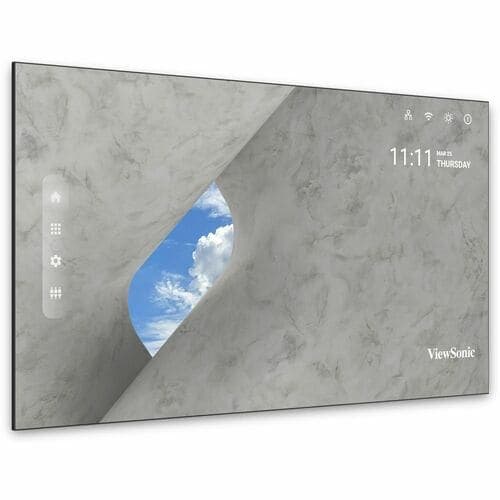

Part of the ViewSonic® LDP Performance Series, the ViewSonic® LDP163-091C all-in-one Direct View LED display delivers the same easy installation and accessibility found in our acclaimed LDM series, but takes visuals to the next level with breathtaking 4K Ultra HD resolution and advanced Chip-on-Board (COB) technology. Built to be a stunning centerpiece in any high-end lobby, boardroom, or auditorium, this 163" Direct View LED display delivers stunning, larger-than-life images. As a true all-in-one solution, the LDP163-091C includes the display, controller, and all components in a single part number, making specification, purchasing, and setup incredibly simple. With a high brightness of 600 nits, an incredible 10,000:1 contrast ratio, and powerful dual 30W speakers, this display provides vibrant, high-impact visuals and immersive sound for an exceptional viewing experience.

Tech Specs

163IN PRECONFIGURED 4K ALL-IN-O WITH 3840X2160 3840HZ HDMI specifications
USB	Yes
HDMI	Yes
Depth	1.6"
Width	11.9 ft
Height	85.5"
Serial	Yes
Ethernet	Yes
Brand Name	ViewSonic
Brightness	600 Nit
Mount Type	Wall Mountable
USB Type-C	Yes
Color Depth	13-bit

Show all 62 specs

Color Gamut	120% Rec. 709
Energy Star	No
Pixel Pitch	36.6 mil
Scan Format	2160p
Aspect Ratio	16:9
HDCP Version	2.2
Manufacturer	ViewSonic Corporation
Product Name	Preconfigured 4K All-In-One dvLED Displays
Product Type	Digital Signage Display
Wireless LAN	Yes
Input Voltage	120 V AC
Mount Surface	Wall
Product Model	LDP163-091C
TAA Compliant	No
Product Family	LDP
Product Series	LDP
Processor Model	RK3399
Standard Memory	4 GB
Maximum LED Life	11.4 Year
Operating System	Android 9.0 Pie
Package Contents	<ul><li>Preconfigured 4K All-In-One dvLED Displays</li><li>Power Cord</li><li>LAN Cable</li><li>IR Extender Cable</li><li>Remote Control</li><li>Installation Guide</li><li>Wall Mount</li></ul>
Application/Usage	Auditorium
Country of Origin	China
Memory Technology	DDR4 SDRAM
Number of Screens	1
Screen Size Class	13.58 ft
Display Resolution	3840 x 2160
Display Screen Type	LCD
Backlight Technology	Direct View LED
Viewable Screen Size	13.58 ft
Weight (Approximate)	511.47 lb
Native Contrast Ratio	10,000:1
Number of HDMI Inputs	4
Number of HDMI Outputs	1
Processor Manufacturer	Rockchip
Number of USB 2.0 Ports	2
Number of USB 3.0 Ports	1
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Manufacturer Part Number	LDP163-091C
Number of Audio Line Out	2
Number of HDMI 2.0 Ports	5
Graphics Controller Model	Mali-T860MP4
Manufacturer Website Address	http://www.viewsonic.com
Impact Protection (IK) Rating	IK08
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Temperature	32°F (0°C)
Ingress Protection (IP) Rating	IP54
Additional Warranty Information	<p>3-year limited warranty on parts and labor on-site service</p>
Number of Network (RJ-45) Ports	3
Graphics Controller Manufacturer	ARM
