STARTECH.COM

16 PORT RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH

SKU: 5TN579VPN: RKCONS1716K

16 PORT RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH

Key Features

  • TECH SPECIFICATIONS: Rackmount KVM Console, 17" Active Matrix TFT LCD Monitor, 1280 x 1024, 16 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
  • PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan

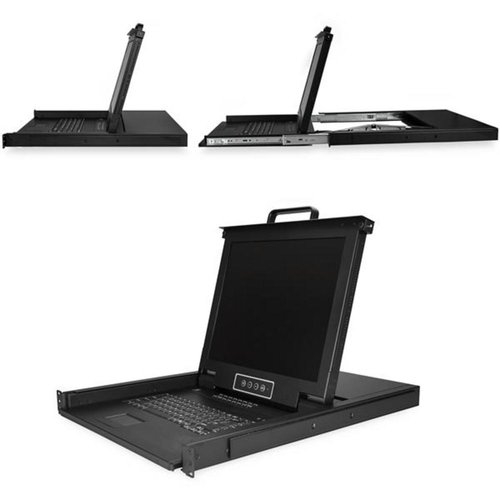

  • INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22" [56 cm] to 35" [90 cm] (incl. mounting hardware)
  • HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours
  • TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

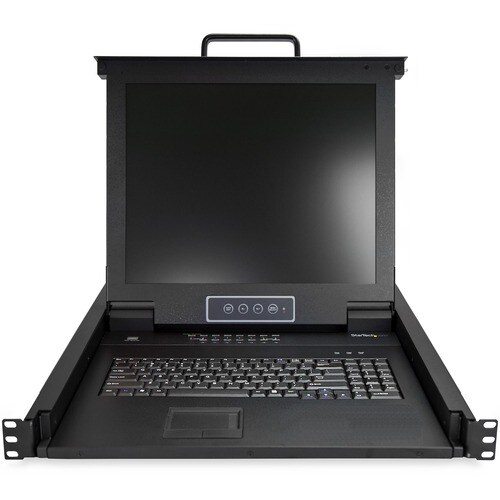

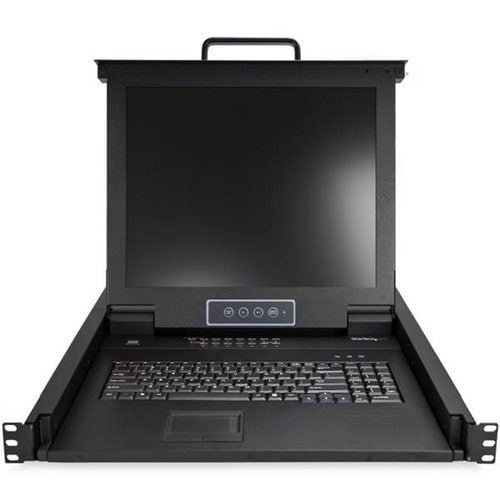

Providing centralized control of up to 16 servers, this 16-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space. An All-Inclusive Solution The 1U rackmount console features a built-in keyboard, and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024. This 16-port KVM console comes with everything you need to set up right out of the box: 16 VGA KVM Cables Mounting Rails M5 Cage Nuts and Screws Simple System Integration With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure. StarTech.com Rack Consoles Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

16 PORT RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH specifications
USBYes
VGAYes
Depth22.9"
Width17.6"
Height1.7"
KeyboardYes
PS/2 PortYes
Brand NameStarTech.com
KVM SwitchYes
Device TypeLCD Rack Console
Rack Height1U
Screen ModeSXGA
Show all 40 specs
Screen Size17"
Color FamilyBlack
ManufacturerStarTech.com
Product Name16-Port Rackmount KVM Console with 17" Display
Product TypeLCD Rack Console
Input Voltage120 V AC
Product ColorBlack
Package Contents<ul> <li>16-Port Rackmount KVM Console with 17" Display </li> <li>1 x KVM Cable</li> <li>8 x M5 Cage Nuts </li> <li>8 x M5 Screws </li> <li>5 x Regional Power Cords (NA, JP, UK, EU, ANZ) </li> <li>2 x Mounting Rails </li> <li>1 x Quick-Start Guide</li> </ul>
Product MaterialSteel
Country of OriginChina
Packaged Quantity1 Each
Power Consumption23 W
Screen Resolution1280 x 1024
Platform SupportedPC
Display Screen TypeLCD
Input Voltage Range100V AC to 240V AC
Number of USB Ports2
Number of VGA Ports1
Number of PS/2 Ports2
Pointing Device TypeTouchPad
Weight (Approximate)30.30 lb
Proprietary InterfaceYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberRKCONS1716K
Number of Proprietary Ports16
Manufacturer Website Addresshttp://www.startech.com
Number of Computers Supported16

Datasheets & Resources
