STARTECH.COM

16 PORT RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH

SKU: 5BH821VPN: RKCONS1916K

16 PORT RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH

Key Features

  • TECH SPECIFICATIONS: Rackmount KVM Console, 19" Active Matrix TFT LCD Monitor, 1280 x 1024, 16 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
  • PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
  • INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 23.8' [60.5 cm] to 35' [89 cm] (incl. mounting hardware)
  • HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours.
  • TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control. Maximize your IT budget, minimize your hassle This 16-port KVM switch provides all the essential controls you'll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024. Maximize your screen space This versatile rack-mount LCD console has a 19 in. screen. The increased screen space enables you to run multiple applications on the same screen, maximizing your productivity. Clutter-free monitoring The console slides out from 1U of rack space, enabling you to easily monitor and control 16 servers, and even more if connecting through a KVM switch. The rack-mount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free. Hassle-free system integration The rackmount LCD features a 16-port KVM module, allowing you to connect it directly to 16 servers. The KVM module offers the flexibility you need to easily integrate the console into your existing server infrastructure. The RKCONS1916K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

16 PORT RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH specifications
USBYes
VGAYes
Depth25.3"
Width19"
Height1.7"
KeyboardYes
PS/2 PortYes
Brand NameStarTech.com
KVM SwitchYes
Daisy ChainYes
Device TypeLCD Rack Console
Rack Height1U
Show all 43 specs
Screen ModeSXGA
Screen Size19"
ManufacturerStarTech.com
Product Name16 Port KVM Console for Server Rack - Rackmount LCD - 19in - 1U
Product TypeLCD Rack Console
Product ModelRKCONS1916K
WEEE Statementhttps://media.startech.com/cms/pdfs/rkcons1916k_weee.pdf

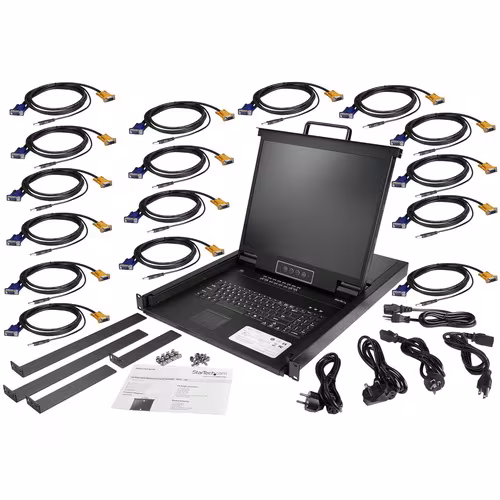

Package Contents<ul> <li>1 x KVM Console</li> <li>16 x KVM Cables</li> <li>8 x M5 Cage Nuts</li> <li>8 x M5 Screws</li> <li>5 x Regional Power Cords (NA, JP, UK, EU, ANZ)</li> <li>4 x Mounting Rails (Variable Lengths)</li> <li>1 x Quick-Start Guide</li> </ul>
Country of OriginChina
Packaged Quantity1 Each
Screen Resolution1280 x 1024
Platform SupportedPC
REACH free of SVHCYes
Display Screen TypeLCD
Number of USB Ports2
Number of VGA Ports1
Number of PS/2 Ports2
Pointing Device TypeTouchPad
Weight (Approximate)29.76 lb
Proprietary InterfaceYes
REACH Declaration URLhttps://media.startech.com/cms/pdfs/rkcons1916k_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/rkcons1916k_rohs.pdf
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberRKCONS1916K
Certifications & Standards<ul> <li>CE</li> <li>FCC</li> <li>UL</li> </ul>
Environmental CertificationEU RoHS
Number of Proprietary Ports17
Manufacturer Website Addresshttp://www.startech.com
Number of Computers Supported16
End of Life Manual AvailabilityYes
