STARTECH.COM
15M MULTIMODE FIBER OPTIC CABLE OM3 LC/LC 50/125 LSZH FIBER CABLE
SKU: 6TQ540VPN: A50FBLCLC15

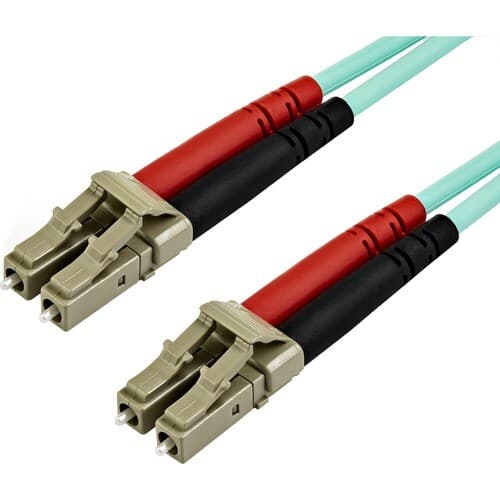

15M MULTIMODE FIBER OPTIC CABLE OM3 LC/LC 50/125 LSZH FIBER CABLE
Key Features
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
- SPECS: 15m (49ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.
Built for Performance
With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.
Reliable Connection
Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
High-Quality Construction
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
A50FBLCLC15 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Tech Specs
| Features | Corrosion Resistant |
|---|---|
| Brand Name | StarTech.com |
| Cable Type | Fiber Optic |
| Cable Length | 49.21 ft |
| Color Family | Green |
| Manufacturer | StarTech.com |
| Product Name | Fiber Optic Duplex Patch Network Cable |
| Product Type | Network Cable |
| Product Color | Aqua |
| Shipping Width | 8.66" |
| Shipping Height | 1.26" |
| Device Supported | Network Device |
Show all 27 specsShow fewer
| Fiber Optic Mode | Multi-mode |
|---|---|
| Country of Origin | China |
| Packaged Quantity | 1 Each |
| Data Transfer Rate | 10 Gbit/s |
| Cable Characteristic | Patch Cable |
| Manufacturer Part Number | A50FBLCLC15 |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | LC Network - Male |
| Manufacturer Website Address | http://www.startech.com |
| Connector Gender on First End | Male |
| Shipping Weight (Approximate) | 6.56 oz |
| Connector Gender on Second End | Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x LC Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
