LEGRAND AV - C2G
15FT CMG DB9 CABLE M-F
SKU: 1P4469VPN: 52160
15FT CMG DB9 CABLE M-F
Key Features

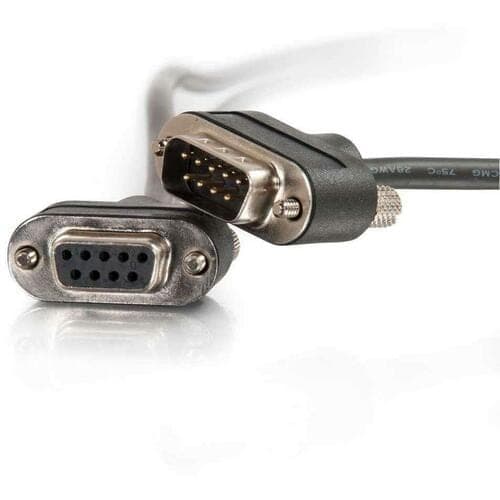

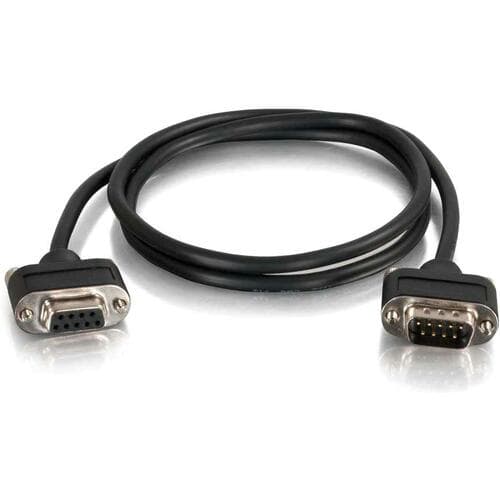

- C2G 15 ft Serial RS232 DB9 Cable with Low Profile Connectors
- Designed to support RS-232/Serial communications
- DB-9 Male (M) to DB-9 Female (F)
- CMG-rated for in-wall use
- Wired straight through
- Shielded to prevent unwanted EMI/RFI interference
- Connector thumbscrews for a quick and easy connection
- 15' / 15 Foot / 15 Feet
- C2G Lifetime Warranty
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Audio/Video installations in educational and commercial settings often require in-wall rated cable. Our CMG-rated line was specifically engineered to meet this requirement while overcoming common challenges faced by installers in these environments. Low-Profile connectors (1.25 in total depth) save valuable space in the gang box, while the rounded shape accommodates smaller monitor mounts so that the cable can be easily hidden from view.
Specifically designed to support RS-232/Serial communications, this cable is fully shielded to prevent unwanted EMI/RFI interference. The fully molded cable design delivers excellent strain relief, while connector thumbscrews provide a quick and easy connection every time. All lines are wired straight through.
CMG-rated cables meet with many NEC requirements for Communications Cables - General Purpose In Wall Use.
Tech Specs
| Brand Name | C2G |
|---|---|
| Cable Type | Serial |
| Cable Length | 15 ft |
| Color Family | Black |
| Manufacturer | Legrand Group |
| Product Name | 15ft RS232 DB9 Cable with Low Profile Connectors - In Wall Rated - M/F |
| Product Type | Data Transfer Cable |
| Product Color | Black |
| Country of Origin | China |
| American Wire Gauge | 28 AWG |
| Weight (Approximate) | 0.45 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Show all 19 specsShow fewer
| Environmentally Friendly | Yes |
|---|---|
| Manufacturer Part Number | 52160 |
| Connector Type on First End | DB-9 RS-232 Serial - Male |
| Connector Type on Second End | DB-9 RS-232 Serial - Female |
| Manufacturer Website Address | http://www.legrand.us |
| Connector on First End Details | 1 x 9-pin DB-9 RS-232 Serial - Male |
| Connector on Second End Details | 1 x 9-pin DB-9 RS-232 Serial - Female |
