10PORT INDUSTRIAL USB 3.1 GEN1 WITH DUAL USB-C HUB CHARGING

SKU: 8PZ339VPN: ID-US0811-S1

In Stock

$162.99$115.68

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

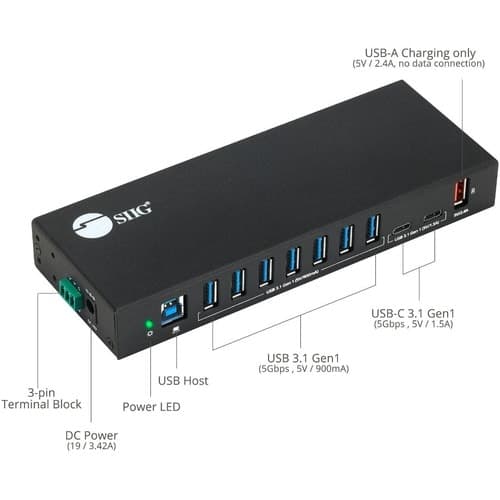

Key Features

Adds 9 USB 3.1 Gen 1 ports and one dedicated high power 5V/2.4A USB-A charging port for your system
Provides seven USB 3.1 Gen 1 Type-A ports and two USB 3.1 Gen 1 USB-C ports
Supports ultra-fast USB 3.1 data transfer rates of up to 5Gbps, and is backward compatible with USB 2.0 and USB 1.1 devices
Works with high-bandwidth USB 3.1 Gen 1 Type-A and USB-C devices, such as external hard disks, high resolution webcams, camcorders, video surveillance cameras, digital video cameras, multi-channel audio and more
Dedicated 5V/2.4A USB Type-A charging port to charge your Mobile or Tablet devices quickly
Industrial grade rugged aluminum housing design to withstand harsh industrial environments, and provides excellent heat dissipation for reliable performance and long life
Over-current detection and protection circuit design to protect the hub and connected devices

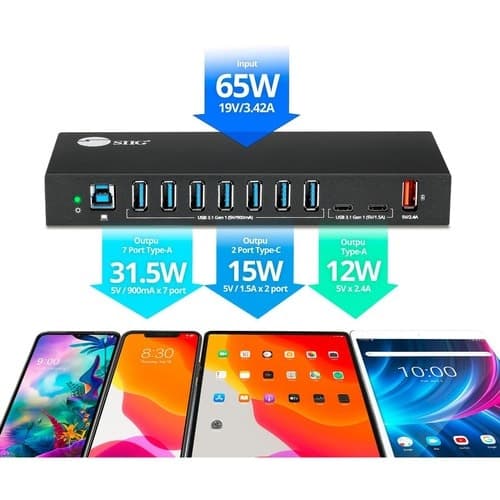

The included 19V/3.42A power adapter provides sufficient power output to all ports 900mA power output on each USB 3.1 Gen 1 Type-A port and 1.5A power output for each USB 3.1 Gen 1 USB-C port
Power input surge protection (600W) for each port

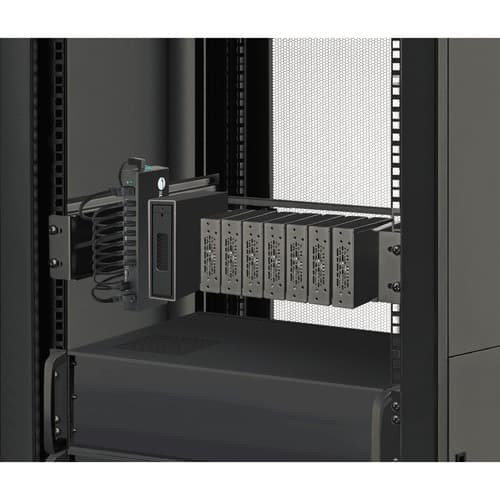

Wall and DIN rail mount support

Adding to inquiry lets you bundle multiple products into a single quote request.

Add 9 SuperSpeed USB 3.1 ports and a dedicated 5V/2.4A charging port to your system

Features

Adds 9 USB 3.1 Gen 1 ports and one dedicated high power 5V/2.4A USB-A charging port for your system
Provides seven USB 3.1 Gen 1 Type-A ports and two USB 3.1 Gen 1 USB-C ports
Supports ultra-fast USB 3.1 data transfer rates of up to 5Gbps, and is backward compatible with USB 2.0 and USB 1.1 devices
Works with high-bandwidth USB 3.1 Gen 1 Type-A and USB-C devices, such as external hard disks, high resolution webcams, camcorders, video surveillance cameras, digital video cameras, multi-channel audio and more
Dedicated 5V/2.4A USB Type-A charging port to charge your Mobile or Tablet devices quickly
Industrial grade rugged aluminum housing design to withstand harsh industrial environments, and provides excellent heat dissipation for reliable performance and long life
Over-current detection and protection circuit design to protect the hub and connected devices
The included 19V/3.42A power adapter provides sufficient power output to all ports 900mA power output on each USB 3.1 Gen 1 Type-A port and 1.5A power output for each USB 3.1 Gen 1 USB-C port
Power input surge protection (600W) for each port
Wall and DIN rail mount support
Supports UASP function (with Windows 10 / 8 native USB 3.0 Host driver only)

10PORT INDUSTRIAL USB 3.1 GEN1 WITH DUAL USB-C HUB CHARGING specifications
Width	2.6"
Height	1"
Length	7.2"
Brand Name	SIIG
Form Factor	Wall/DIN Rail Mountable
Manufacturer	SIIG, Inc
Product Name	10-Port Industrial USB 3.1 Gen 1 Hub with Dual USB-C & Charging
Product Type	USB Hub
UASP Support	Yes
Product Color	Black
Host Interface	USB Type B

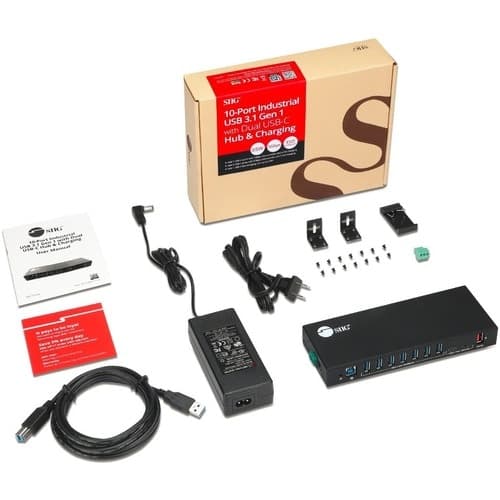

Package Contents	<ul> <li>10-Port Industrial USB 3.1 Gen 1 Hub with Dual USB-C & Charging</li> <li>Switching Power Adapter (19V/3.42A) & AC Power Cord</li> <li>USB 3.1 Gen 1 Type-A to Type-B Cable (2m)</li> <li>DIN-Rail and Wall Mount kit</li> <li>Terminal Block</li> <li>User Manual</li> </ul>

Show all 21 specs

Country of Origin	China
Platform Supported	PC
Weight (Approximate)	13.28 oz
Number of USB 3.1 Ports	9
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	ID-US0811-S1
Total Number of USB Ports	10
Manufacturer Website Address	http://www.siig.com
