STARTECH.COM

10 8K DISPLAYPORT 1.4 CABLE DP 1.4 HBR3 VIDEO CORD VESA CERTIFIED

SKU: 5TN573VPN: DP14MM3M

10 8K DISPLAYPORT 1.4 CABLE DP 1.4 HBR3 VIDEO CORD VESA CERTIFIED

Key Features

  • HIGH PERFORMANCE CABLE: 9.8 ft (3 m) VESA Certified cable supports 8K 60Hz (7680x4320), 4K 120Hz (3840x2160), 32.4Gbps bandwidth, HDR10 for high contrast ratio, HBR3, 32 ch audio, MST, GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
  • RELIABLE DESIGN: Built with internal wire manager to ensure signal integrity; Metal connector sub-structure & Al-Mylar Foil with Braid (85% coverage) provide EMI shielding; Latching DP connectors prevent accidental disconnection
  • DURABLE: PVC jacket of this (0.30"/7.5mm outer diameter) video cable absorbs stress of frequent bends protecting the core of the DisplayPort cord; corrosion resistant gold-plated connectors & 28 AWG wire for higher quality video and audio
  • APPLICATIONS: Ideal for home/offices/boardrooms/classrooms, works with your professional workstations: Dell XPS 11th Gen, HP Z2 G8 Tower with Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo & NVIDIA Quadro P graphics cards; Use with UHD monitors/displays
  • SPECS: 3 m (9.8 ft) | Black | DisplayPort 1.4 | DP Male to Male | 28 AWG | PVC Jacket | Al-Mylar foil with 85% Braid | HBR 3, DSC 1.2, HDCP 2.2, 3D Stereo (2560x1600p 120Hz) | Compatible with DP 1.1/1.2/1.3 (1080p/4K) cards & adapters | Lifetime Warranty
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

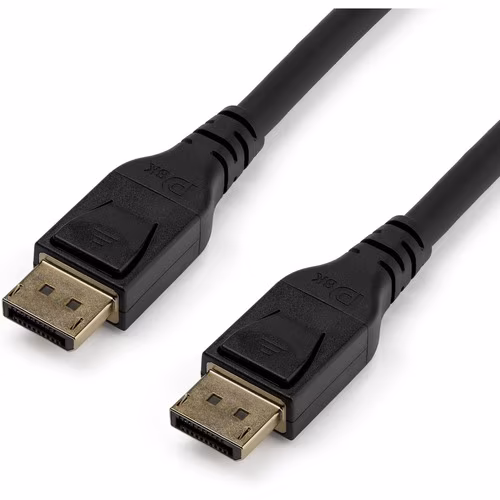

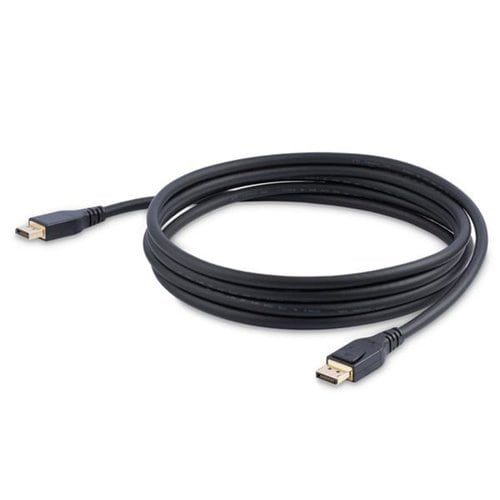

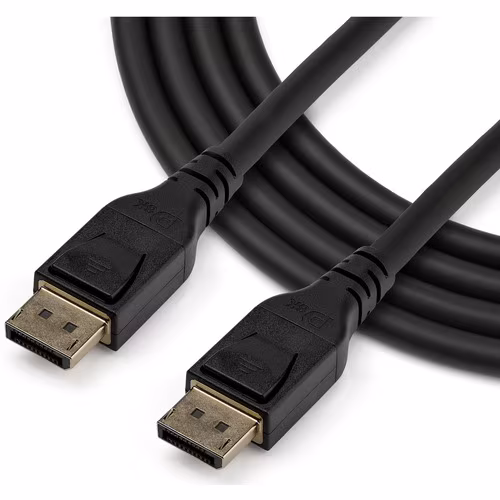

This DisplayPort 1.4 cable connects your DisplayPort™ laptop or desktop computer to a "super ultra-high definition" 8K monitor, TV or projector. It supports resolutions up to 8K (7680x4320) @ 60Hz. The DisplayPort monitor cable provides the essential connection to support the next generation of super ultra-high definition video. This cable is VESA® to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability. The Superior Performance of DisplayPort 1.4 This 8K DisplayPort cable supports all DP 1.4 features: High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards High Dynamic Range (HDR) for higher contrast ratio and vivid colors Multi-Stream Transport (MST) for daisy-chaining multiple monitors Display Stream Compression 1.2 (DSC) for maximum resolution output Forward Error Correction to manage data transmission errors High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display 32 Uncompressed Digital Audio Channels Flexible Cable with Reliable Latched Connectors The cable has a slim professional grade 28 AWG construction that allows for flexible installation while offering superior reliability for a clean quality installation. Each connector features latches that provide secure connections between your devices. 8K: Enabling Business Continuity 8K has a resolution of 7680 x 4320 and is also known as 4320p and Super Ultra High Definition (SUHD). It is seen in digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure. Comprehensive Product Testing & Expert Technical Support StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales. DP14MM3M is backed by a StarTech.com lifetime warranty.

Tech Specs

10 8K DISPLAYPORT 1.4 CABLE DP 1.4 HBR3 VIDEO CORD VESA CERTIFIED specifications
FeaturesDisplay Stream Compression (DSC) 1.2
ShieldingYes
Brand NameStarTech.com
Cable TypeDisplayPort
Jacket TypeVW-1
Cable Length9.84 ft
Color FamilyBlack
ManufacturerStarTech.com
Product Name9.8 ft. (3 m) DisplayPort 1.4 Cable - VESA Certified
Product TypeVideo Cable
Product ColorBlack
Shipping Width5.67"
Show all 39 specs
WEEE Statementhttps://media.startech.com/cms/pdfs/dp14mm3m_weee.pdf
Jacket MaterialPolyvinyl Chloride (PVC)
Shipping Height1.50"
Device SupportedDesktop Computer
Connector PlatingNickel
Country of OriginChina
Packaged Quantity1 Each
Data Transfer Rate32.4 Gbit/s
REACH free of SVHCYes
American Wire Gauge28 AWG
Supported Resolution7680 x 4320
Weight (Approximate)0.60 lb
REACH Declaration URLhttps://media.startech.com/cms/pdfs/dp14mm3m_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/dp14mm3m_rohs.pdf
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberDP14MM3M
Connector Type on First EndDisplayPort 1.4 Digital Audio/Video - Male
Environmental CertificationEU RoHS
Connector Type on Second EndDisplayPort 1.4 Digital Audio/Video - Male
Manufacturer Website Addresshttp://www.startech.com
Connector Gender on First EndMale
Shipping Weight (Approximate)3.52 oz
Connector Gender on Second EndMale
Connector on First End Details1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
End of Life Manual AvailabilityYes
