1 PORT PCIE NETWORK CARD LAN GIGABIT ETHERNET NIC ADAPTER RJ45

SKU: TE0507VPN: ST1000SPEX2L

In Stock

$26.27

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

A single 10/100/1000Mbps compatible RJ45 Ethernet port

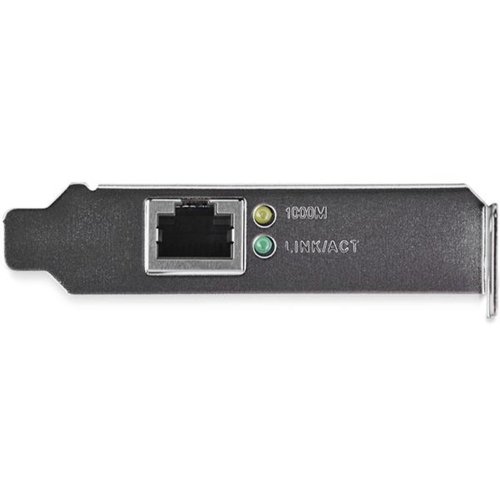

Gigabit detection and Link/Activity LED indicators
Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
Jumbo frame support
Full and half duplex support
Supports Wake-on-LAN function
Crossover Detection & Auto-Correction (Auto MDI/MDI-X)

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

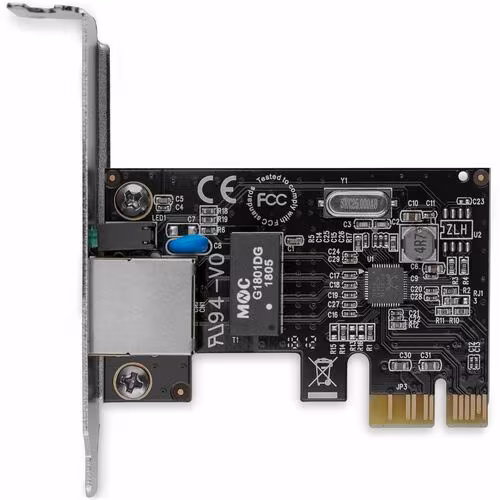

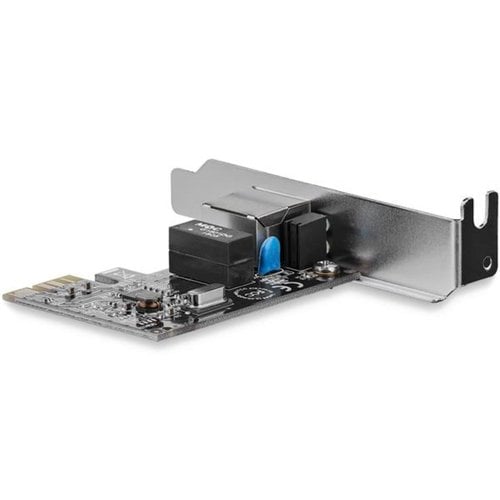

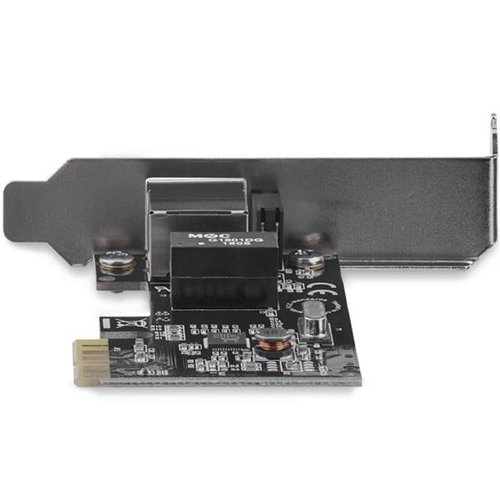

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface. Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance. The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor. Backed by a 2-year StarTech.com warranty and free lifetime technical support.

Tech Specs

1 PORT PCIE NETWORK CARD LAN GIGABIT ETHERNET NIC ADAPTER RJ45 specifications
USB	No
Width	0.7"
XJACK	No
Height	1.9"
Length	2.8"
Thickness	700 mil
Brand Name	StarTech.com
Card Height	Low-profile
Card Length	Half-length
Form Factor	Plug-in Card
Serial Port	No
Ethernet AUI	No

Show all 36 specs

Manufacturer	StarTech.com
Product Name	1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
Product Type	Gigabit Ethernet Card
Chipset Model	RTL8111
Host Interface	PCI Express
Network (RJ-45)	Yes
Device Supported	PC
Package Contents	<ul> <li>1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile</li> <li>1 x Standard Profile Bracket</li> <li>1 x Instruction Manual</li> </ul>
PoE (RJ-45) Port	No
Country of Origin	China
Packaged Quantity	1 Each
Network Technology	10/100/1000Base-T
System Requirements	<ul> <li>Windows® 2000, XP, Vista, 7, 8, 8.1, 10</li> <li>Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 </li> <li>Mac OS X® 10.6 to 10.9</li> <li>Linux 2.4.x to 4.11.x LTS Versions Only </li> </ul>
Chipset Manufacturer	Realtek
Media Type Supported	Twisted Pair
Weight (Approximate)	1 oz
Total Number of Ports	1
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally Friendly	Yes
Manufacturer Part Number	ST1000SPEX2L
Maximum Data Transfer Rate	8 Gbit/s
Environmental Certification	EU RoHS
Manufacturer Website Address	http://www.startech.com
Number of Network (RJ-45) Ports	1
