STARTECH.COM
1.6FT THUNDERBOLT 4 CABLE - INTEL-CERTIFIED 40GBPS 100W PD
SKU: HL5059VPN: TBLT4MM50CM
1.6FT THUNDERBOLT 4 CABLE - INTEL-CERTIFIED 40GBPS 100W PD
Key Features
- HIGH PERFORMANCE: 1.6ft/50cm Thunderbolt 4 cable supports 40 Gbps, 8K video, and 100W power; USB Type-C to Type C connectors offer universal compatibility with Thunderbolt 3 & 4, USB4, and other USB-C devices THUNDERBOLT CERTIFIED: Intel Thunderbolt certified for guaranteed compatibility with Thunderbolt hosts and devices; DisplayPort 1.4a with DSC supports up to 8K 60Hz or dual 4K 60Hz; Compliant with PCI Express 3.0 (32 Gbps) for external PCIe devices
- QUALITY CONSTRUCTION:Nickel-plated connectors with PVC strain reliefs for durability; Coaxial wire with braided alloy shield for enhanced EMI protection; Durable TPE outer jacket is environmentally friendly, non-toxic, halogen-free, and RoHS compliant
- APPLICATIONS: Versatile connectivity with Thunderbolt 4 and USB-C laptops, docking stations, 4K/8K UHD monitors, external PCIe chassis and storage drives; Delivers optimal low-latency performance with Thunderbolt networking and audio devices
- SPECS: 1.6ft (50cm); Black; Thunderbolt 4 (40 Gbps); USB4 (40 Gbps), USB 3.2 Gen 2 (10 Gbps); DisplayPort 1.4a w/ DSC; 8K 60Hz or Dual 4K 60Hz; PCIe 3.0; 100W PD; 30/34 AWG (Coaxial/Twisted Pair); Cable Outer Diam.: 0.18in (4.6mm)
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
This Thunderbolt™ 4 (40 Gbps) cable enables Thunderbolt 4 signals over USB Type-C connectors. Deliver video, data, and up to 100W of Power Delivery to Thunderbolt, USB, and DisplayPort™ devices.
40 Gbps for Thunderbolt 4 / 3 Devices
This cable supports data transfer of 40 Gbps when connected to a Thunderbolt 4, Thunderbolt 3, or USB4-compatible source and device. It is capable of transferring photo and video files four times faster than standard USB 3.2 gen 2 (10Gbps) cables.
USB-C Compatible
The Thunderbolt 4 cable is compatible with all USB Type-C devices and can be used to charge and sync mobile devices. In addition, this cable can be used to connect and power USB-C laptops, such as MacBook® and Chromebook™; and USB-C peripherals such as portable hard drives and docking stations.
Full-8K Video

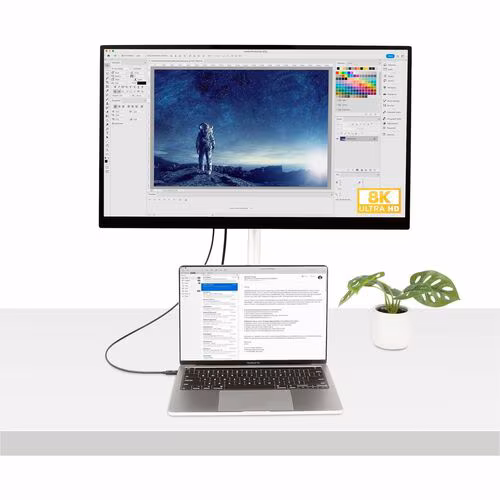

The cable supports full-8K 60Hz video and DisplayPort 1.4a, and is compatible with DisplayPort displays. Use it to connect a docking station to laptop, or a laptop to a display
USB Power Delivery
This Thunderbolt 4 cable delivers up to 100W of Power Delivery to charge a laptop or power a display, and 15W for bus-powered devices such as hard drive enclosures.
Thunderbolt Networking
The cable can be used to daisy chain up to 6 Thunderbolt 4 enabled devices, such as laptops for peer-to-peer 10GbE networking. In addition, connect two Thunderbolt 4 laptops to transfer/migrate data.
Tech Specs
| Features | USB- Power Delivery (USB PD) |
|---|---|
| Shielding | Yes |
| Brand Name | StarTech.com |
| Cable Type | Thunderbolt 4 |
| Cable Length | 1.60 ft |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Product Name | Thunderbolt 4 Audio/Video Cable |
| Product Type | A/V Cable |
| Product Color | Black |
| WEEE Statement | https://media.startech.com/cms/pdfs/tblt4mm50cm_weee.pdf |
| Jacket Material | Thermoplastic Elastomer (TPE) |
Show all 34 specsShow fewer
| Device Supported | Audio/Video Device |
|---|---|
| Connector Plating | Nickel |
| Packaged Quantity | 1 |
| Data Transfer Rate | 40 Gbit/s |
| REACH free of SVHC | Yes |
| Shielding Material | Braided Alloy |
| American Wire Gauge | 30/34 AWG |
| Supported Resolution | 7680 x 4320 |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/tblt4mm50cm_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/tblt4mm50cm_rohs.pdf |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | TBLT4MM50CM |
| Connector Type on First End | Thunderbolt 4 (USB 4.0) - Male |
| Environmental Certification | EU RoHS |
| Connector Type on Second End | Thunderbolt 4 (USB 4.0) - Male |
| Manufacturer Website Address | http://www.startech.com |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x Thunderbolt 4 (USB 4.0) - Male |
| Connector on Second End Details | 1 x Thunderbolt 4 (USB 4.0) - Male |
| End of Life Manual Availability | Yes |
